Certificated RF Low Attenuation Cable Coaxial Cable LKF200 Feeder Jumper Cable
This type of product is 50 ohm physical foam insulated radio frequency coaxial cable, which is characterized by taking into account the optimal loss and power, and is the best choice for wireless communication.
LKF200
FOB
10000 meters
500000meters / Month
China
15Day
Quantity:
US $0.33 - US $0.38
/ meters
Product Name: Certificated RF Low Attenuation Cable Coaxial Cable LKF200 Feeder Jumper Cable
Electrical Characteristics &Mechanical and Environmental Characteristics:
Attenuation & Average Power @ 20℃ and Sea Level
This type of product is 50 ohm Wide Frequency Low Attenuation Cable , LKF 200 Feeder Jumper Cable, Copper
Clad Aluminium Coaxial Cable.

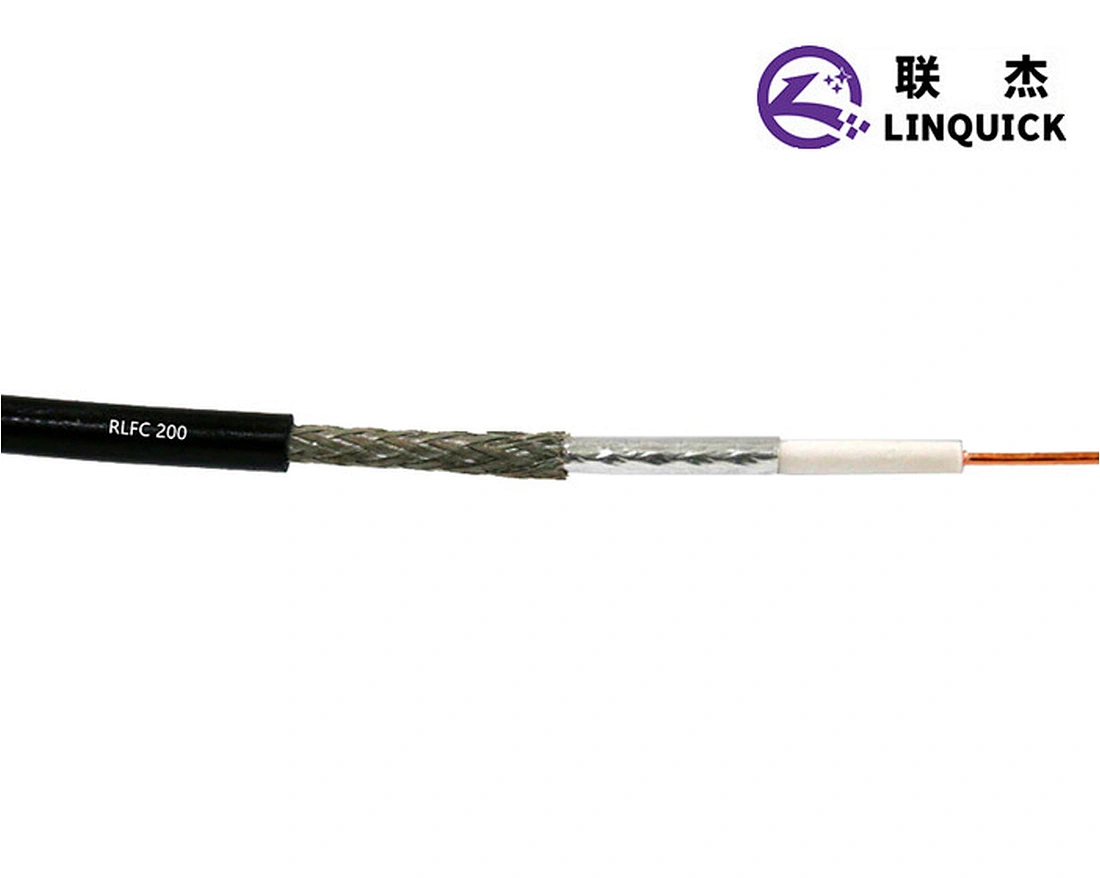

Coaxial Cable,Feeder Jumper Cable and Low Attenuation Cable real picture
Coaxial Cable,Feeder Jumper Cable and Low Attenuation Cable usage scenarios
Our Vision
Focus on becoming the leader in communication cable industry.
Our advantage prodcts:
1.Coaxial Cable
2.Feeder Jumper Cable
3.Low Attenuation Cable
Charateristics:
- Low Attenuation
- High Power Rating
Application:
- Wireless Communication.
- Two-way Transmission System.
- Testing Equipment & Ethernet.
| Name | Material | Diameter(mm) |
| Inner Conductor | Bare Copper | 1.12 |
| Dielectric | Foam PE | 2.95 |
| Outer Conductor | Bonded Aluminum Foil+Tinned Copper Braid | 3.66 |
| Jacket | PE | 4.95 |
Electrical Characteristics &Mechanical and Environmental Characteristics:
| Impedance(Ohm) | 50 |
| Capacitance(pF/m) | 80 |
| Velocity of Propagation(%) | 83 |
| Jacket Spark (VRMS) | 3000 |
| Peak Power Rating(KW) | 2.5 |
| Shieding Effectiveness(＞dB) | 90 |
| Cut-off Frequency(GHz) | 39 |
Attenuation & Average Power @ 20℃ and Sea Level
| Frequency(MHz) | Attenuation(dB/m) | Average Power(KW) |
| 30 | 0.05 | 1.02 |
| 50 | 0.07 | 0.79 |
| 150 | 0.13 | 0.45 |
| 220 | 0.15 | 0.37 |
| 450 | 0.22 | 0.26 |
| 900 | 0.32 | 0.18 |
| 1500 | 0.42 | 0.14 |
| 1800 | 0.46 | 0.13 |
| 2000 | 0.49 | 0.12 |
| 2500 | 0.55 | 0.10 |
| 5800 | 0.86 | 0.07 |
This type of product is 50 ohm Wide Frequency Low Attenuation Cable , LKF 200 Feeder Jumper Cable, Copper
Clad Aluminium Coaxial Cable.
Coaxial Cable,Feeder Jumper Cable and Low Attenuation Cable real picture
Coaxial Cable,Feeder Jumper Cable and Low Attenuation Cable usage scenarios
