CCTV CATV LQ412W Cable 75ohm ATV/MATV Broadband, Coaxial Cable
75 ohm physical foam insulated radio frequency coaxial cable, which is characterized by the smallest loss. It is mainly used in cable TV and satellite TV systems.
LQ412W
FOB
20000 meters
500000meters / Month
China
28Day
Quantity:
US $2.58 - US $3.38
/ meters
Product Name: LQ412W 75ohm ATV/MATV Broadband Coaxial Cable for CATV Cable & Transmissio Cable
Charateristics:
Electrical Characteristics &Mechanical and Environmental Characteristics:
Attenuation@ 68℉ （20℃）
75 ohm physical foam insulated radio frequency Coaxial Cable, often used as CATV Cable and
Transmissio Cable.

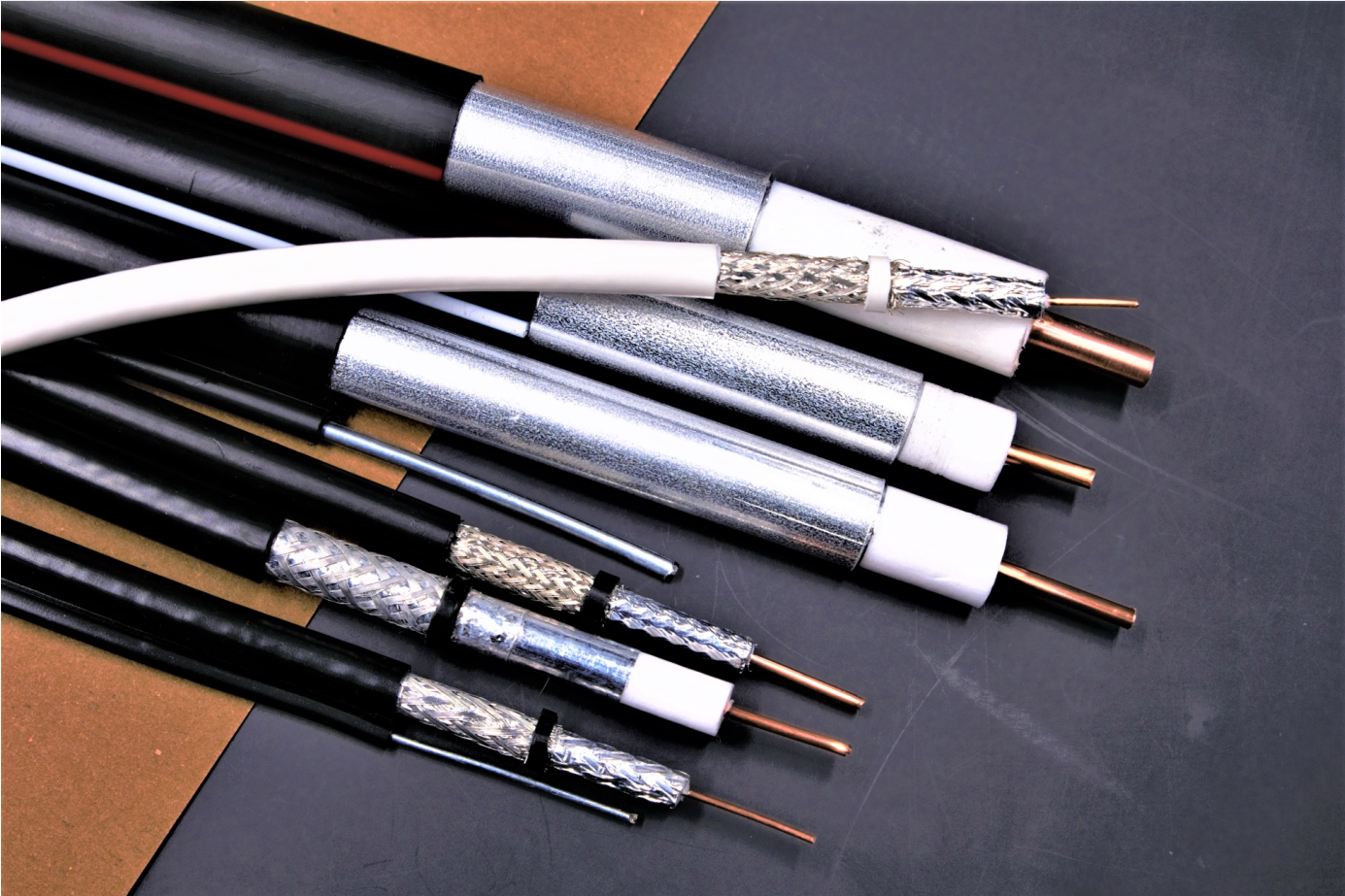

Coaxial Cable, CATV Cable and Transmissio Cable real picture
Usage Scenarios
Our advantage prodcts:
1.Coaxial Cable
2.CATV Cable
3.Transmissio Cable
Charateristics:
- Smallest Loss
Application:
- Cable TV & Satellite TV Systems
| Name | Material | Diameter(mm) |
| Inner Conductor | BC or CCA | 2.15 |
| Dielectric | Foamed PE | 9.00 |
| Outer Conductor | Welded AI. Tube | 9.70 |
| Outer Conductor Thickness | 0.35 | |
| Jacket | Black PE | 12.20 |
| Jacket Wall Thickness | 1.15 | |
Electrical Characteristics &Mechanical and Environmental Characteristics:
| Capacitance(pF/m) | 50±3 | ||
| Impedance(Ohms) | 75±2 | ||
| Velocity of Propagation(%) | 87% | ||
| Shielding Effectiveness(≥dB) | 110 | ||
| Operation Temperature (℃） | -40- +80 | ||
| Return Loss | Frequency | dB | |
| 5-1000Mhz | ≥28dB | ||
Attenuation@ 68℉ （20℃）
| Frequency(MHz) | ≤dB/100m @ 20 ℃ | Frequency(MHz) | ≤dB/100m @ 20 ℃ |
| 5 | 1.00 | 450 | 7.40 |
| 55 | 2.50 | 500 | 7.70 |
| 211 | 4.70 | 550 | 8.00 |
| 250 | 5.30 | 600 | 8.50 |
| 300 | 5.80 | 750 | 9.60 |
| 350 | 6.50 | 865 | 10.40 |
| 400 | 7.00 | 1000 | 11.30 |
75 ohm physical foam insulated radio frequency Coaxial Cable, often used as CATV Cable and
Transmissio Cable.
Coaxial Cable, CATV Cable and Transmissio Cable real picture
Usage Scenarios
