RF coaxial fiber 7/8 low loss feeder cable super flexible telecommunication cable
This type of product is 50 ohm physical foam insulated radio frequency coaxial cable, which is characterized by taking into account the optimal loss and power, and is the best choice for wireless communication.
LKF 7/8〃
FOB
10000 meters
500000meters / Month
China
7Day
Quantity:
US $1.99 - US $2.79
/ meters
Product Name: RF coaxial fiber 7/8 low loss feeder cable super flexible telecommunication cable
(RF coaxial fiber, feeder cable, telecommunication cable)
Electrical Characteristics &Mechanical and Environmental Characteristics:
Attenuation(VSWR1.0,cable temp.20℃)and Average Power( VSWR1.0,ambient temp.40℃)
This type of product is 50 ohm feeder cable, RF coaxial fiber, often use as telecommunication cable

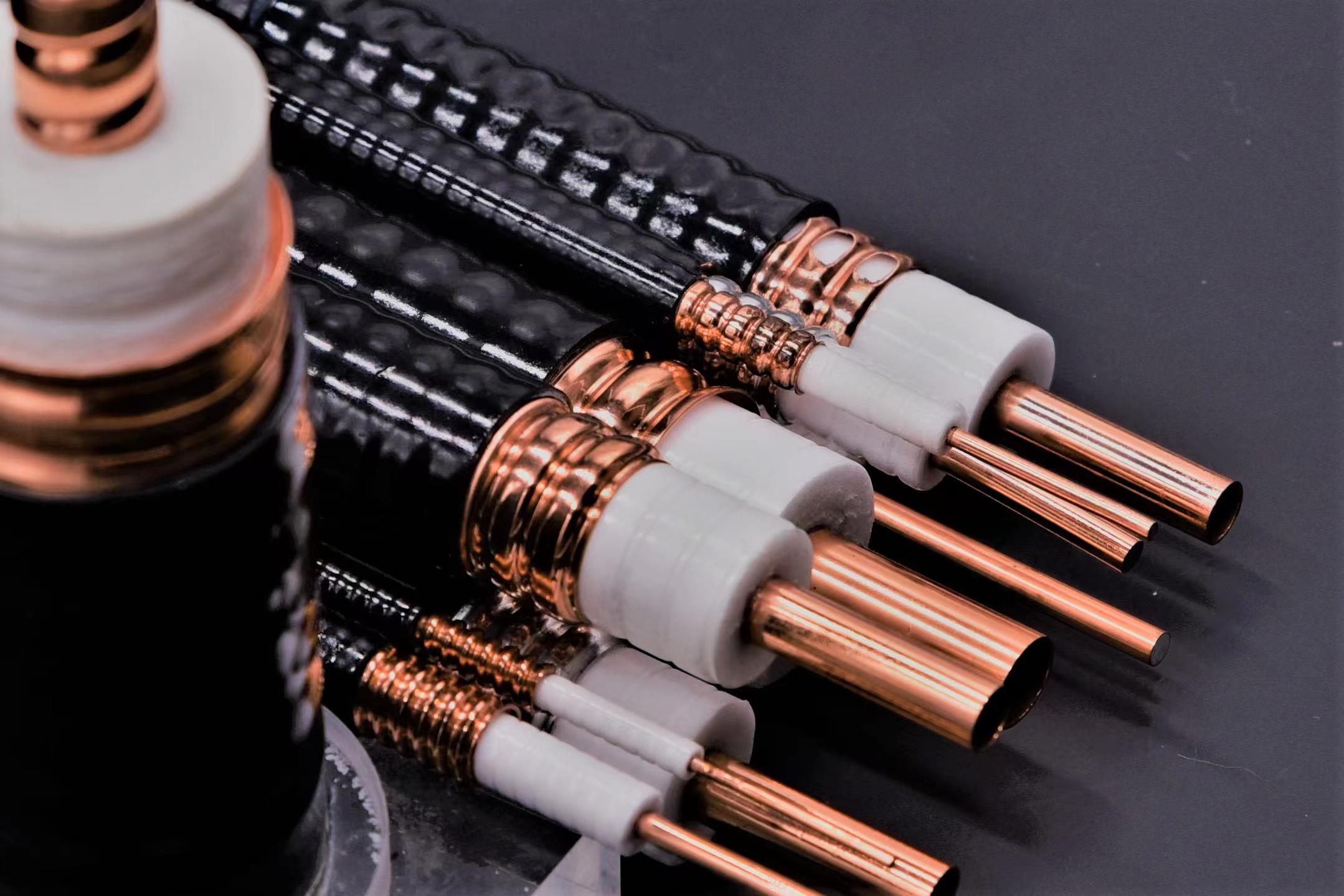

RF coaxial fiber, feeder cable, telecommunication cable real picture

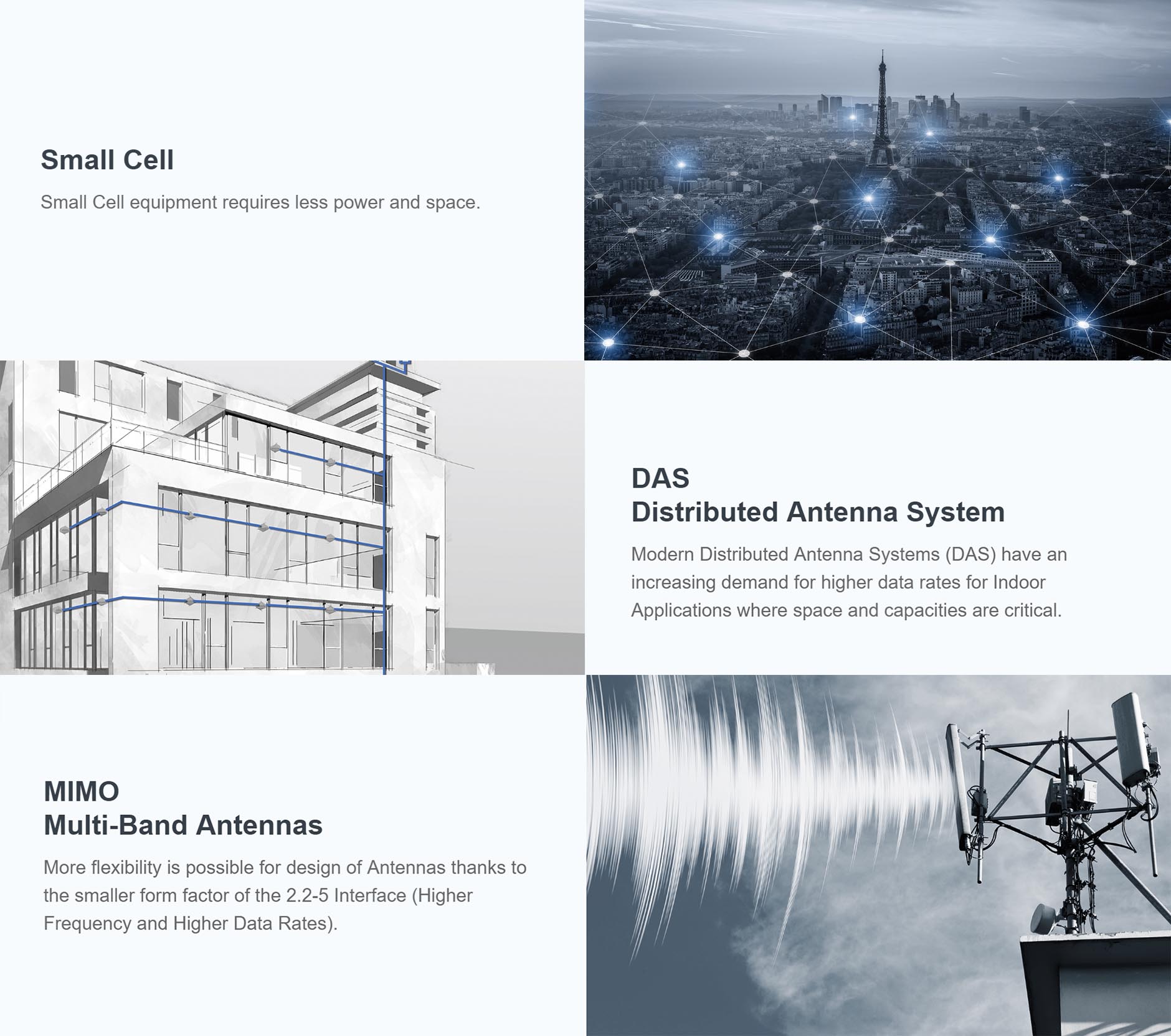

RF coaxial fiber, feeder cable, telecommunication cable usage scenarios
1.RF coaxial fiber- Snall Cell
2.feeder cable-DAS Distuibuted Antenna System
3.telecommunication cable- MIMO Multi-Band Antennas
We're professional supplier for RF coaxial fiber, feeder cable, telecommunication cable and etc.
Our advantage products:
1.feeder cable
2.RF coaxial fiber
3.telecommunication cable
Charateristics:
- Low Attenuation
- High Power Rating
Application:
- Wireless Communication.
- Two-way Transmission System.
- Testing Equipment & Ethernet.
(RF coaxial fiber, feeder cable, telecommunication cable)
| Name | Material | Diameter(mm) |
| Inner Conductor | Smooth Copper Tube | 9.0 |
| Dielectric | Foam PE | 22.5 |
| Outer Conductor | Corrugated Copper Tube | 24.9 |
| Jacket | PE or Low Smoke Halogen-free Fire-retardant PE | 27.7 |
Electrical Characteristics &Mechanical and Environmental Characteristics:
| Impedance(Ohm) | 50 |
| Capacitance(pF/m) | 76 |
| Velocity of Propagation(%) | 88 |
| Peak Power Rating(KW) | 91 |
| RF Peak Voltage(KV) | 3.0 |
| Insulation Resistance(MΩ.km) | ＞5000 |
| Cut-off Frequency(GHz) | 5.2 |
| Insulation Voltage(KV) | 10 |
| Inner Conductor DC Resistance(Ω/km) | 1.0 |
| Outer Conductor DC Resistance(Ω/km) | 1.2 |
| Jacket Spark(KV) | 8.0 |
| Shieding Effectiveness(dB) | ＞120 |
| VSWR ≤ (Return loss ≥ dB) | 0.005—3GHz | 1.15 (23) |
| 0.8—1.0GHz | 1.10 (26) | |
| 1.7—2.0GHz | 1.10 (26) | |
| 2.0—2.4GHz | 1.10 (26) |
| Min. Single Bending Radius(mm) | 90 |
| Min. Repeated Bending Radius(mm) | 250 |
| No. of Bends | 15 |
| Tensile Strength(kg) | 147 |
| Storage Temp.(℃) | -55~+85 |
| Installation Temp.(℃) | -40~+60 |
| Operating Temp.(℃) | -55~+85 |
Attenuation(VSWR1.0,cable temp.20℃)and Average Power( VSWR1.0,ambient temp.40℃)
| Frequency(MHz) | Attenuation(dB/100m) | Average Power(KW) |
| 100 | 1.17 | 8.62 |
| 200 | 1.69 | 5.99 |
| 450 | 2.60 | 3.88 |
| 800 | 3.56 | 2.83 |
| 900 | 3.80 | 2.65 |
| 1000 | 4.03 | 2.50 |
| 1500 | 5.08 | 1.99 |
| 1800 | 5.61 | 1.79 |
| 2000 | 6.05 | 1.68 |
| 2200 | 6.40 | 1.59 |
| 2400 | 6.75 | 1.54 |
| 2500 | 6.90 | 1.50 |
| 3000 | 7.60 | 1.33 |
This type of product is 50 ohm feeder cable, RF coaxial fiber, often use as telecommunication cable

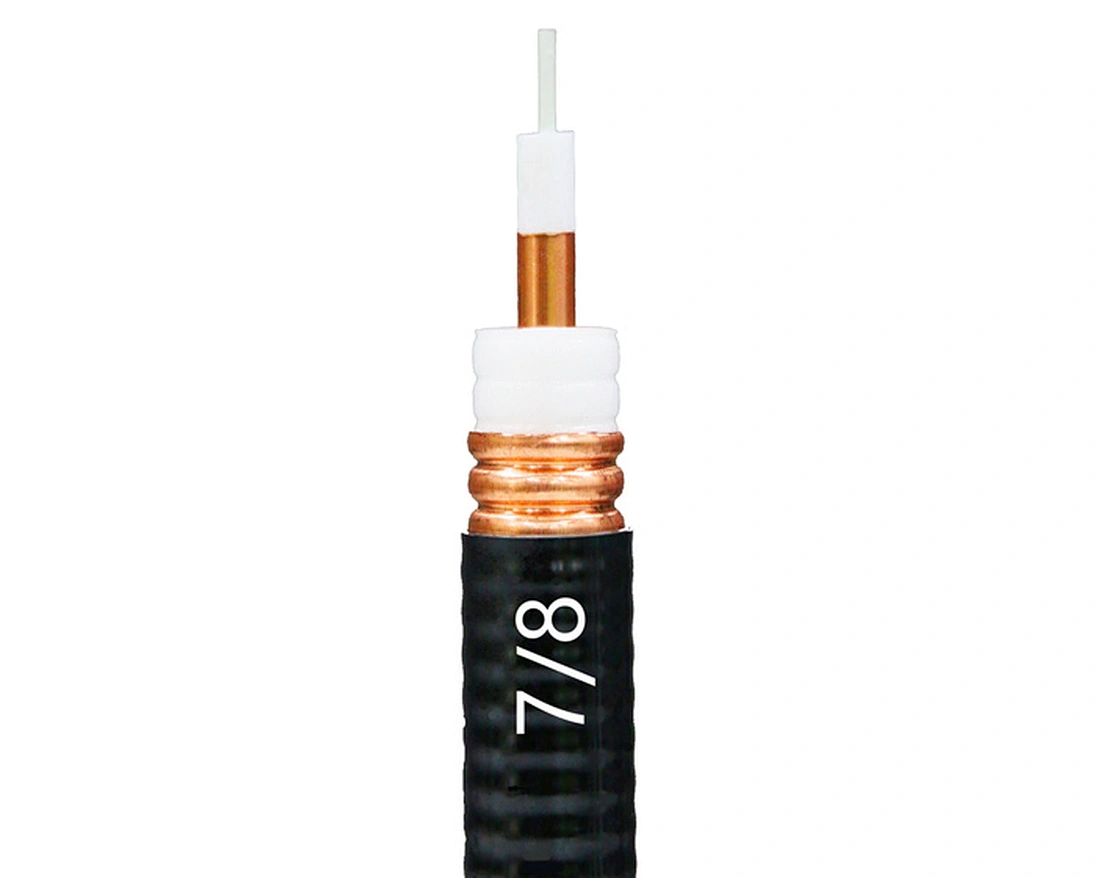

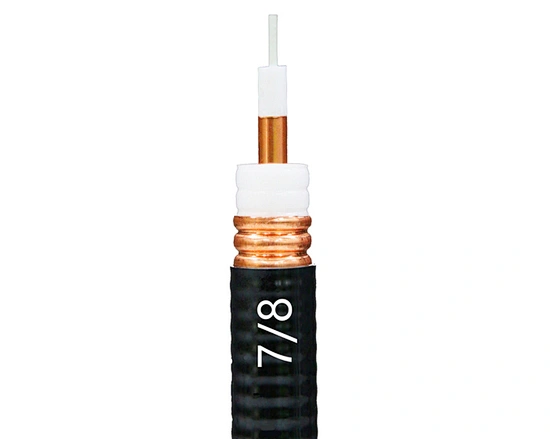

RF coaxial fiber, feeder cable, telecommunication cable real picture
RF coaxial fiber, feeder cable, telecommunication cable usage scenarios
1.RF coaxial fiber- Snall Cell
2.feeder cable-DAS Distuibuted Antenna System
3.telecommunication cable- MIMO Multi-Band Antennas
