High Quality Outdoor Cable GYTY53 Direct Burid Armoured Cable single mode fiber optic cable
Outdoor optical cable is a kind of communication line for optical signal transmission. It is mainly composed of a number of optical fibers in a certain way to form a cable core, which is covered with a sheath, and some are also covered with an outer sheath.
GYTY53
FOB
10000 meters
500000meters / Month
China
15Day
Quantity:
US $0.20 - US $1.29
/ meters

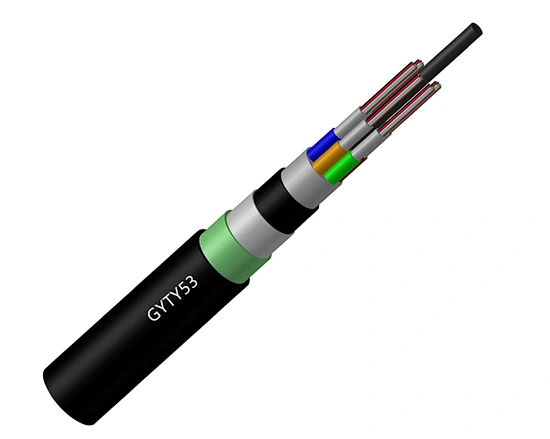

Product Name: High Quality Outdoor Cable GYTY53 Direct Burid Armoured Cable single mode fiber optic cable
Operating Temperature: -40℃~+70℃
Bending Radius:
Outdoor Cable including Direct Burid Armoured Cable, fiber optic cable.

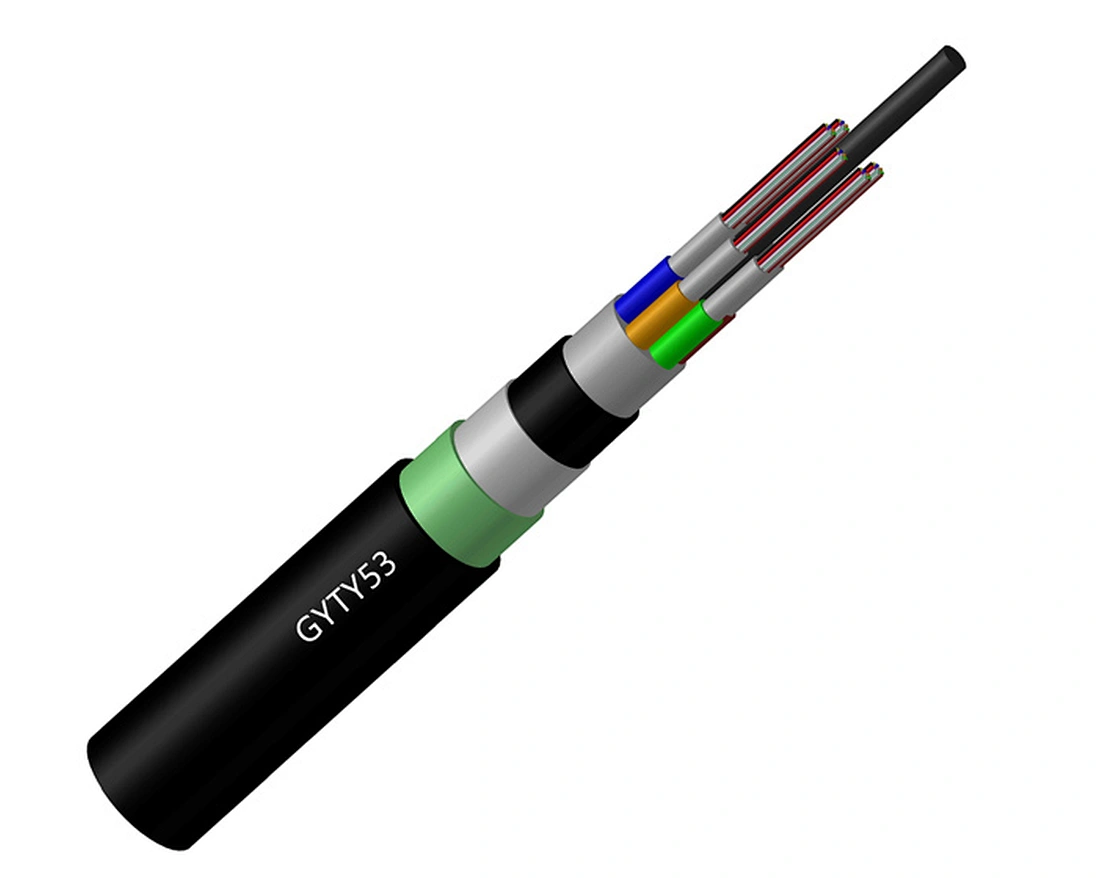

Outdoor Cable, Direct Burid Armoured Cable, fiber optic cable real picture

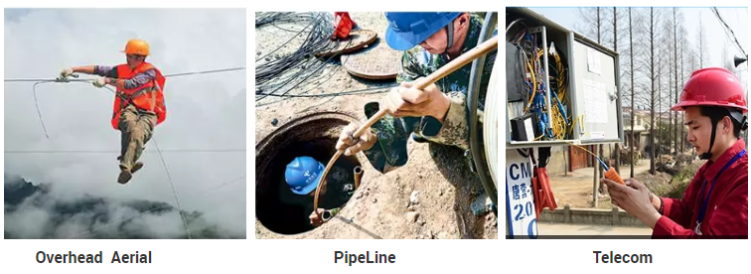

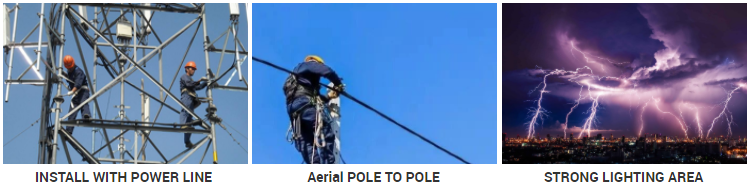

Outdoor Cable, Direct Burid Armoured Cable, fiber optic cable usage scenarios
We're Outdoor Cable supplier in china, we can offer total Fiber Optic cable to you, such as
Direct Burid Armoured Cable, fiber optic cable.
Charateristics:
- Large Transmission Capacity
- Long Distance Repeater
- Low Attenuation
- Low Dispersion
- Free from Electromagnetic Interference
Application:
- Duct, Aerial and Buried Installations.
Operating Temperature: -40℃~+70℃
Bending Radius:
- Static: 12.5xD
- Dynamic: 25xD
| Fiber Count | Cable Diameter(mm) | Loose Tube Number | Fiber per Tube | Diameter of Strength Member(mm) | Tensile Strength(N) | Crush Long/ Short Term(N/100MM) | |
| Long Term | Short Term | ||||||
| 2-36 | 11.2 | 6 | 6 | 2.0 | 1000 | 3000 | 1000/3000 |
| 38-72 | 11.6 | 6 | 12 | 2.0 | 1000 | 3000 | 1000/3000 |
| 74-96 | 12.8 | 8 | 12 | 2.0/3.2 | 1000 | 3000 | 1000/3000 |
| 98-108 | 13.3 | 9 | 12 | 2.0/3.7 | 1000 | 3000 | 1000/3000 |
| 110-120 | 13.9 | 10 | 12 | 2.0/4.2 | 1000 | 3000 | 1000/3000 |
| 122-144 | 15.1 | 14 | 12 | 2.0/5.4 | 1000 | 3000 | 1000/3000 |
| 146-216 | 15.3 | 18 | 12 | 2.0 | 1000 | 3000 | 1000/3000 |
| 218-288 | 17.0 | 24 | 12 | 2.0/3.7 | 1000 | 3000 | 1000/3000 |
