Outdoor Cable GYTS 12/ 24/ 28/ 48/ 72/ 96 core fiber optic cable single mode Armoured Fiber Optic Cable
Outdoor optical cable is a kind of communication line for optical signal transmission. It is mainly composed of a number of optical fibers in a certain way to form a cable core, which is covered with a sheath, and some are also covered with an outer sheath.
GYTS
FOB
10000 meters
500000meters / Month
China
15Day
Quantity:
US $0.12 - US $1.18
/ meters
Product Name: Outdoor Cable GYTS 12/ 24/ 28/ 48/ 72/ 96 core fiber optic cable single mode Armoured Fiber Optic Cable
Operating Temperature: -40℃~+70℃
Bending Radius:
Outdoor Cable including Aerial fiber optic cable and Armoured Fiber Optic Cable.

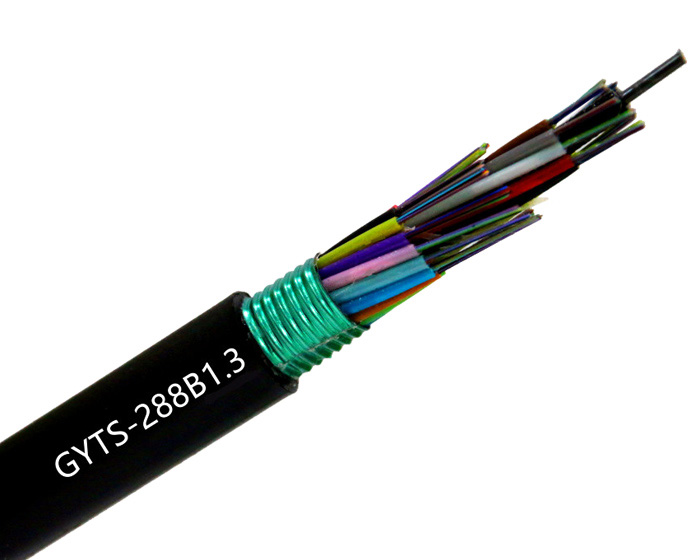

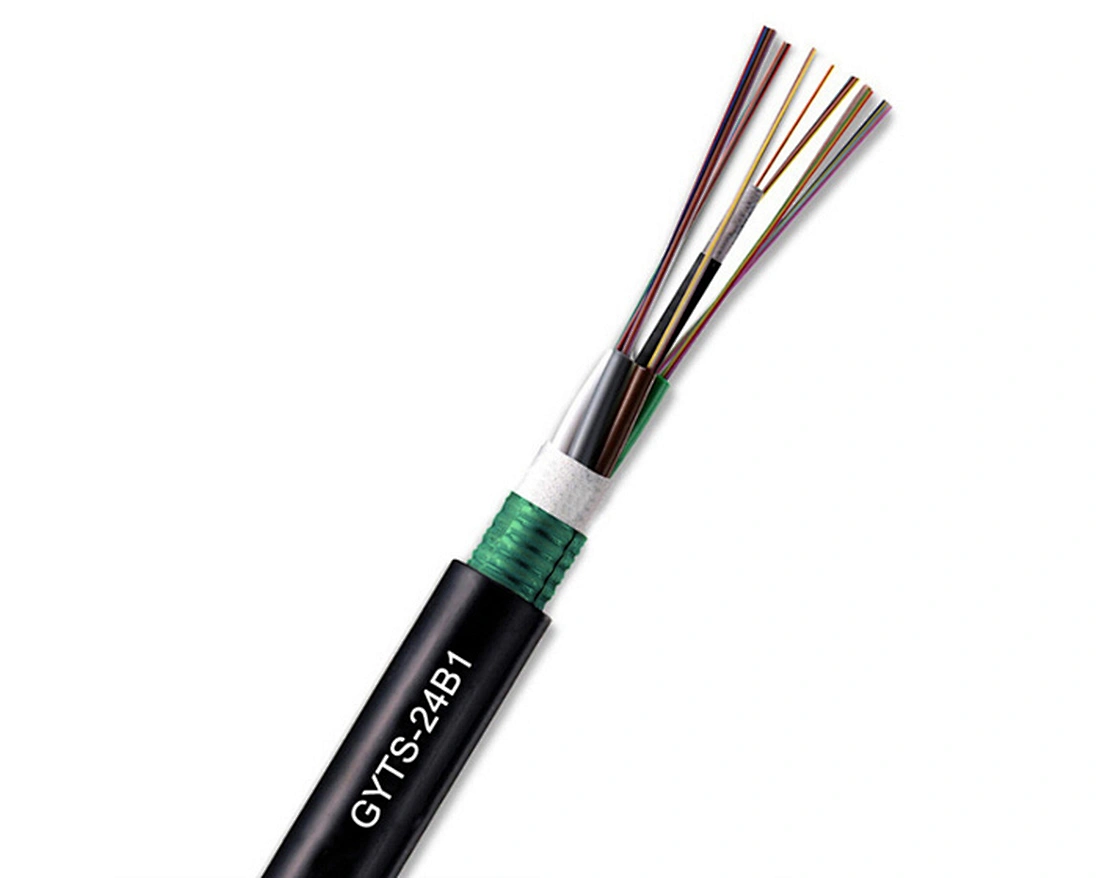

Outdoor Cable, Aerial fiber optic cable and Armoured Fiber Optic Cable real picture.

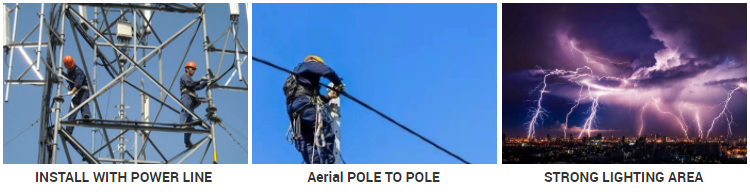

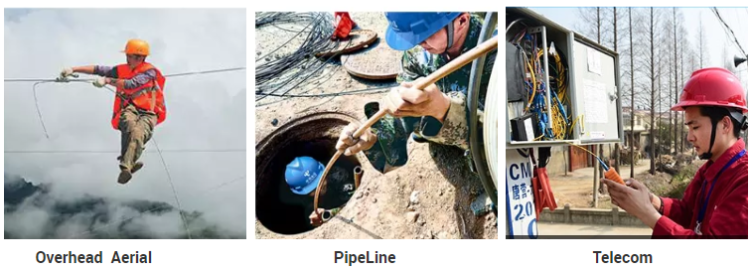

Outdoor Cable, Aerial fiber optic cable and Armoured Fiber Optic Cable usage scenarios
1.Outdoor Cable- Overhead Aerial
2.Aerial fiber optic cable- Telecom
3.Armoured Fiber Optic Cable- Pipeline
We're Outdoor Cable supplier in china, we can offer total Fiber Optic cable to you, such as
Aerial fiber optic cable, Armoured Fiber Optic Cable.
Charateristics:
- Large Transmission Capacity
- Long Distance Repeater
- Low Attenuation
- Low Dispersion
- Free from Electromagnetic Interference
Application:
- Duct and Aerial Installations.
Operating Temperature: -40℃~+70℃
Bending Radius:
- Static: 10xD
- Dynamic: 20xD
| Fiber Count | Cable Diameter(mm) | Loose Tube Number | Fiber per Tube | Diameter of Strength Member(mm) | Tensile Strength(N) | Crush Long/ Short Term(N/100MM) | |
| Long Term | Short Term | ||||||
| 2-30 | 8.8 | 5 | 6 | 1.4 | 600 | 1500 | 300/1000 |
| 32-36 | 9.1 | 6 | 6 | 2.0 | 600 | 1500 | 300/1000 |
| 38-60 | 9.5 | 5 | 12 | 1.6 | 600 | 1500 | 300/1000 |
| 62-72 | 9.8 | 6 | 12 | 2.0 | 600 | 1500 | 300/1000 |
| 74-96 | 11.2 | 8 | 12 | 2.0/3.2 | 600 | 1500 | 300/1000 |
| 98-108 | 11.7 | 9 | 12 | 2.0/3.7 | 600 | 1500 | 300/1000 |
| 110-120 | 12.3 | 10 | 12 | 2.0/4.2 | 600 | 1500 | 300/1000 |
| 122-144 | 13.5 | 14 | 12 | 2.0/5.4 | 600 | 1500 | 300/1000 |
| 146-216 | 13.9 | 18 | 12 | 2.0 | 600 | 1500 | 300/1000 |
| 218-288 | 17.4 | 24 | 12 | 2.0/3.7 | 600 | 1500 | 300/1000 |
Outdoor Cable including Aerial fiber optic cable and Armoured Fiber Optic Cable.
Outdoor Cable, Aerial fiber optic cable and Armoured Fiber Optic Cable real picture.
Outdoor Cable, Aerial fiber optic cable and Armoured Fiber Optic Cable usage scenarios
1.Outdoor Cable- Overhead Aerial
2.Aerial fiber optic cable- Telecom
3.Armoured Fiber Optic Cable- Pipeline
We're Outdoor Cable supplier in china, we can offer total Fiber Optic cable to you, such as
Aerial fiber optic cable, Armoured Fiber Optic Cable.
