GYFTY Outdoor Cable single mode Armoured Fiber Optic Cable 36/48 Corn Optical Fiber Cable
Outdoor optical cable is a kind of communication line for optical signal transmission. It is mainly composed of a number of optical fibers in a certain way to form a cable core, which is covered with a sheath, and some are also covered with an outer sheath.
GYFTY
FOB
10000 meters
500000meters / Month
China
15Day
Quantity:
US $0.12 - US $1.18
/ meters
Product Name: GYFTY Outdoor Cable single mode Armoured Fiber Optic Cable 36/48 Corn Optical Fiber Cable
Operating Temperature: -40℃~+70℃
Bending Radius:
Outdoor Cable including Aerial Optical Fiber Cable and Armoured Fiber Optic Cable.

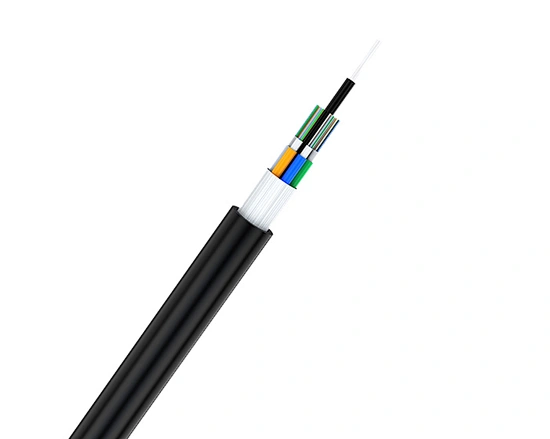

Outdoor Cable including Aerial Optical Fiber Cable and Armoured Fiber Optic Cable real picture

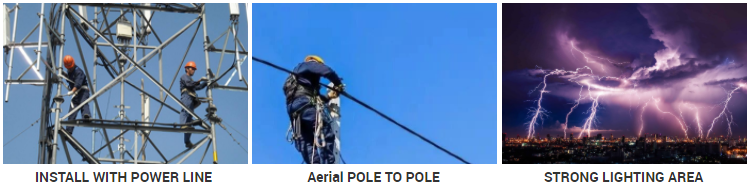

Outdoor Cable, Aerial Optical Fiber Cable and Armoured Fiber Optic Cable usage scenarios
1.Outdoor Cable- Power line
2.Aerial Optical Fiber Cable-Telecom
3.Armoured Fiber Optic Cable- Pipeline
We're Outdoor Cable supplier in china, we can offer total Optical Fiber Cable to you, such as
Armoured Fiber Optic Cable.
Charateristics:
- Large Transmission Capacity
- Long Distance Repeater
- Low Attenuation
- Low Dispersion
- Free from Electromagnetic Interference
Application:
- Duct and Aerial Installations.
Operating Temperature: -40℃~+70℃
Bending Radius:
- Static: 10xD
- Dynamic: 20xD
| Fiber Count | Cable Diameter(mm) | Loose Tube Number | Loose Tube Size | Fiber per Tube | Diameter of Strength Member(mm) | Tensile Strength(N) | Crush Long/ Short Term(N/100MM) | |
| Long Term | Short Term | |||||||
| 2-36 | 10.6 | 6 | 2.2 | 6 | 2.3 | 400 | 1000 | 300/1000 |
| 36-60 | 11.2 | 5 | 2.6 | 12 | 2.1 | 400 | 1000 | 300/1000 |
| 2-42 | 11.2 | 7 | 2.2 | 6 | 3.0 | 600 | 1500 | 300/1000 |
| 44-72 | 12.2 | 6 | 2.6 | 12 | 2.8 | 600 | 1500 | 300/1000 |
| 2-48 | 12.2 | 8 | 2.2 | 6 | 3.6 | 1000 | 3000 | 300/1000 |
| 50-96 | 13.6 | 8 | 2.6 | 12 | 3.6/4.3 | 1000 | 3000 | 300/1000 |
| 98-120 | 14.6 | 10 | 2.5 | 12 | 3.6/5.6 | 1000 | 3000 | 300/1000 |
| 122-144 | 16.4 | 12 | 2.5 | 12 | 3.6/7.4 | 1000 | 3000 | 300/1000 |
Outdoor Cable including Aerial Optical Fiber Cable and Armoured Fiber Optic Cable.
Outdoor Cable including Aerial Optical Fiber Cable and Armoured Fiber Optic Cable real picture
Outdoor Cable, Aerial Optical Fiber Cable and Armoured Fiber Optic Cable usage scenarios
1.Outdoor Cable- Power line
2.Aerial Optical Fiber Cable-Telecom
3.Armoured Fiber Optic Cable- Pipeline
We're Outdoor Cable supplier in china, we can offer total Optical Fiber Cable to you, such as
Armoured Fiber Optic Cable.
