MANUFACTURING FIGURE 8 AERIAL FIBER OPTIC 16 CORE Self-supporting Outdoor Cable
Outdoor optical cable is a kind of communication line for optical signal transmission. It is mainly composed of a number of optical fibers in a certain way to form a cable core, which is covered with a sheath, and some are also covered with an outer sheath.
GYTC8S
FOB
10000 meters
500000meters / Month
China
15Day
Quantity:
US $0.18 - US $1.45
/ meters
Product Name: MANUFACTURING FIGURE 8 AERIAL FIBER OPTIC 16 CORE Self-supporting Outdoor Cable
Operating Temperature: -40℃~+70℃
Bending Radius:
Outdoor Cable including AERIAL FIBER OPTIC and FIGURE 8 AERIAL FIBER .

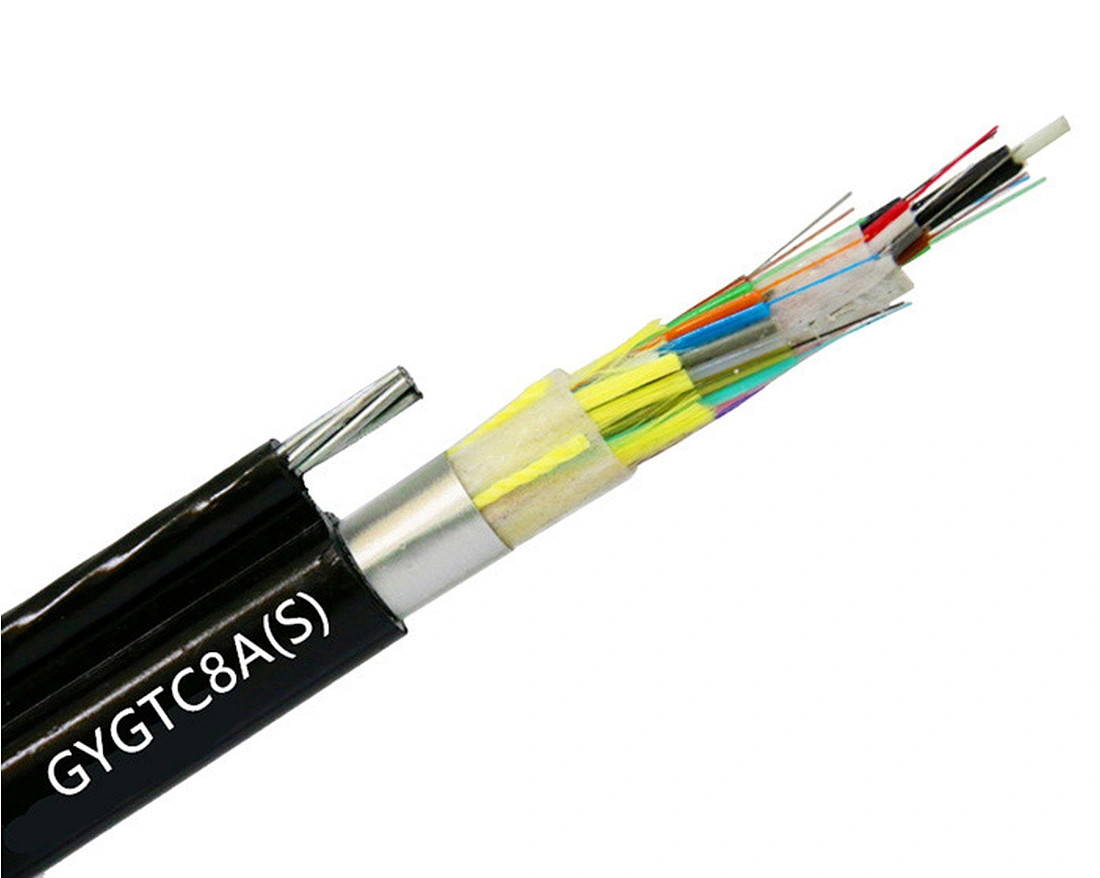

Outdoor Cable, AERIAL FIBER OPTIC and FIGURE 8 AERIAL FIBER real picture

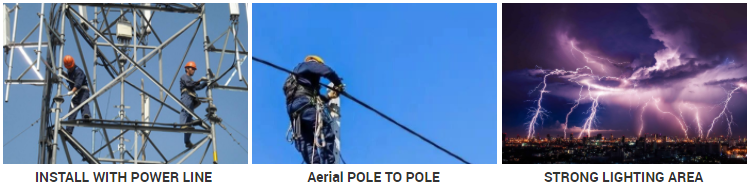

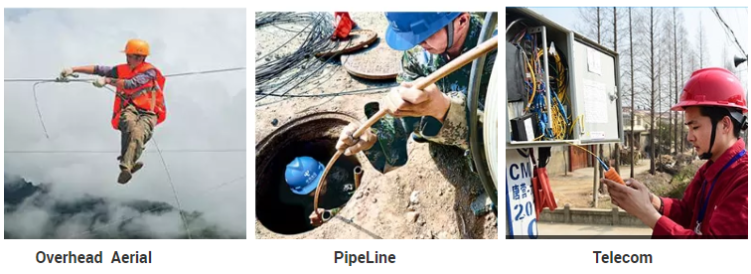

Outdoor Cable, AERIAL FIBER OPTIC and FIGURE 8 AERIAL FIBER USAGE SCENARIOS
1.Outdoor Cable- Duct & Aerial
2.AERIAL FIBER OPTIC- Laid Overhead
3.FIGURE 8 AERIAL FIBER- Duct installation
Our Advantage Products:
1.Outdoor Cable
2.AERIAL FIBER OPTIC
3.FIGURE 8 AERIAL FIBER
Charateristics:
- Large Transmission Capacity
- Long Distance Repeater
- Low Attenuation
- Low Dispersion
- Free from Electromagnetic Interference
- PE Sheath Portects Cable From Ultraviolet Radiation
Application:
- Duct and Aerial Installations.
Operating Temperature: -40℃~+70℃
Bending Radius:
- Static: 10xD
- Dynamic: 20xD
| Fiber Count | Cable Diameter(mm) | Loose Tube Number | Loose Tube Size | Fiber Per Tube | Diameter of Strength (mm) | Tensile Strength(N) | Crush Long/ Short Term(N/100MM) | |
| Long Term | Short Term | |||||||
| 2-30 | 9.9*18.9 | 5 | 1.8 | 6 | 1.5 | 3000 | 8000 | 300/1000 |
| 32-36 | 10.4*19.5 | 6 | 1.8 | 6 | 1.8 | 400 | 1000 | 300/1000 |
| 38-60 | 11.8*20.6 | 5 | 2.5 | 12 | 1.8 | 600 | 1500 | 300/1000 |
| 62-72 | 12.5*21.4 | 6 | 2.5 | 12 | 1.8/2.6 | 600 | 1500 | 300/1000 |
| 74-96 | 14.4*23.2 | 8 | 2.5 | 12 | 2.0/4.2 | 1000 | 3000 | 300/1000 |
| 98-120 | 16.0*24.8 | 10 | 2.5 | 12 | 2.0/5.8 | 1000 | 3000 | 300/1000 |
| 122- 144 | 17.7*26.7 | 12 | 2.5 | 12 | 2.0/7.4 | 1000 | 3000 | 300/1000 |
