Aerial Cable 2-12 Core Single Mode Optical Fiber Cable GYXTW Outdoor Cable
Outdoor optical cable is a kind of communication line for optical signal transmission. It is mainly composed of a number of optical fibers in a certain way to form a cable core, which is covered with a sheath, and some are also covered with an outer sheath.
GYXTW
FOB
10000 meters
500000meters / Month
China
15Day
Quantity:
US $0.12 - US $0.38
/ meters
Product Name: Aerial Cable 2-12 Core Single Mode Optical Fiber Cable GYXTW Outdoor Cable
Operating Temperature: -40℃~+60℃
Installation Temperature: ≮-15℃
Bending Radius:
Outdoor Cable including Aerial Cable and Armoured Optical Fiber Cable.

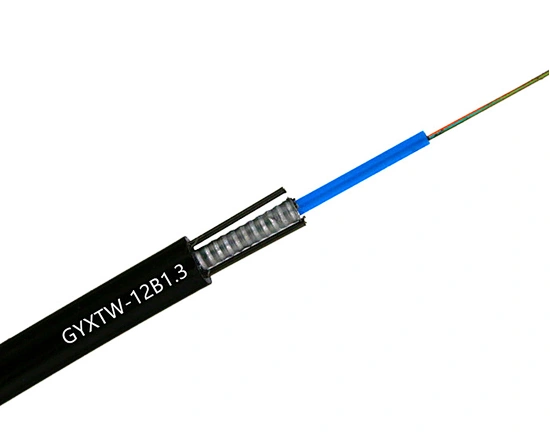

Outdoor Cable, Aerial Cable and Armoured Optical Fiber Cable real picture
Outdoor Cable, Aerial Cable and Armoured Optical Fiber Cable usage scenarios
Charateristics:
- Large Transmission Capacity
- Long Distance Repeater
- Low Attenuation
- Low Dispersion
- Free from Electromagnetic Interference
- Light weight and small size
- Easy for Installation
Application:
- Duct, Buried, Tunnel and Aerial without Messenger Installations.
Operating Temperature: -40℃~+60℃
Installation Temperature: ≮-15℃
Bending Radius:
- Static: 10xD
- Dynamic: 20xD
| Fiber Count | Cable Diameter(mm) | Loose Tube Size | Diameter of Strength Member(mm) | Min. Bending Radius (mm) | Tensile Strength(N) | Crush Long/ Short Term(N/100MM) | ||
| Static | Dynamic | Long Term | Short Term | |||||
| 2-12 | 8.2 | 2.5 | 1.0x2(pcs) | 100 | 200 | 600 | 1000 | 300/1000 |
| 2-12 | 9.2 | 2.5 | 1.0x2(pcs) | 100 | 200 | 600 | 1500 | 300/1000 |
