Quality Assurance Optical Cable 2/4/6/8 core Field Emergency Cable for military communication Cable
Applicable to emergency wiring in the field and military communication

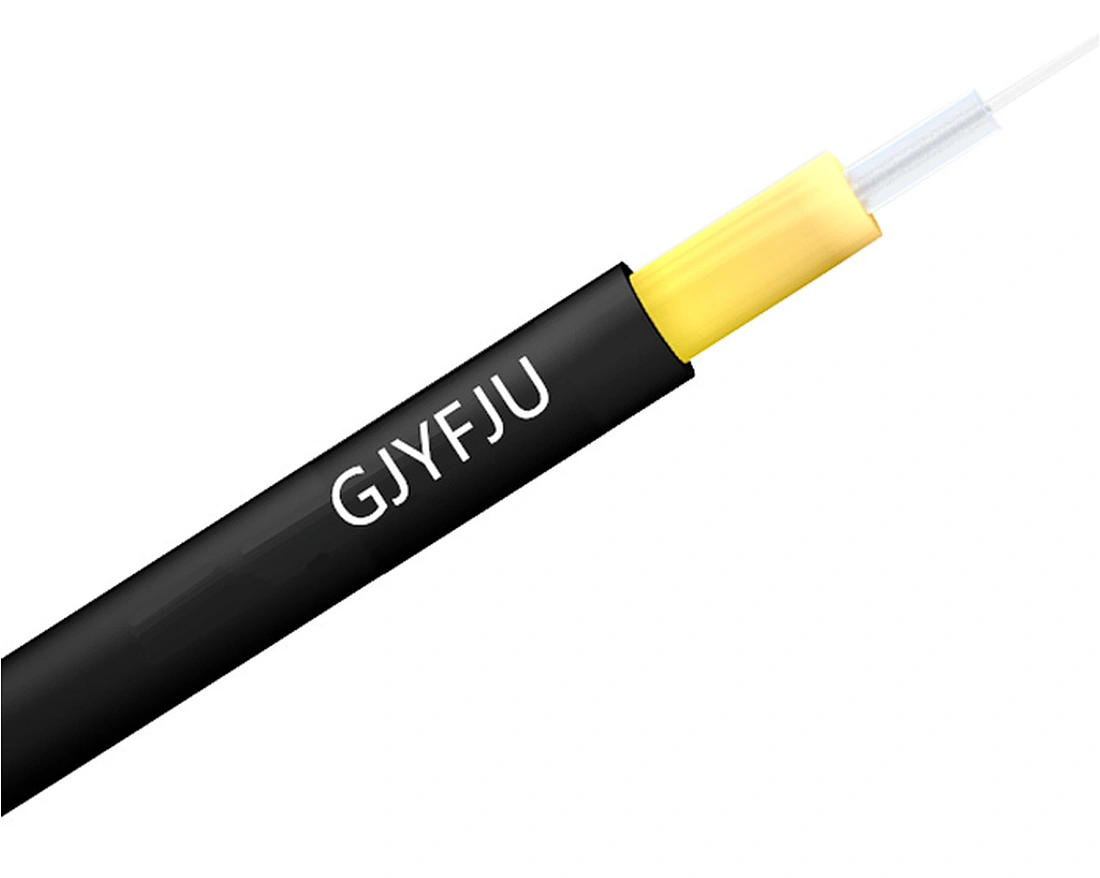

GJYFJU
FOB
10000 meters
500000meters / Month
China
15Day
Quantity:
US $0.08 - US $1.52
/ meters
Product Name: Quality Assurance Optical Cable 2/4/6/8 core Field Emergency Cable for military communication Cable
Operating Temperature: -40℃~+85℃
Bending Radius:
Depengding on Cable cores, climate conditions (such as climate temperature, wind speed, ice thickness),
laying span and power line voltage level.
Outdoor Optical Cable is a kind of communication line for optical signal transmission, often used as
Field Emergency Cable, military communication Cable and etc.

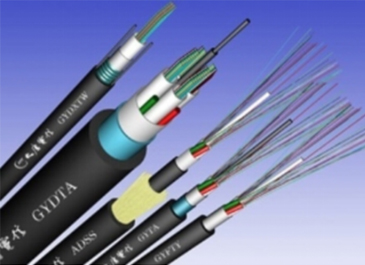

Field Emergency Cable, military communication Cable, Outdoor Optical Cable real picture

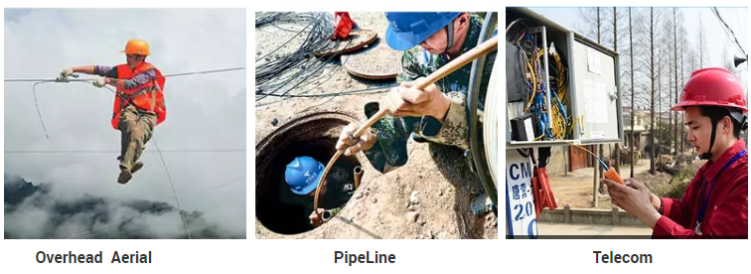

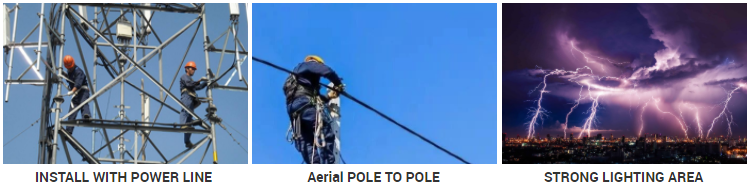

Field Emergency Cable, military communication Cable, Outdoor Optical Cable usage scenarios
Charateristics:
- Large transmission capacity
- Low Attenuation
- Low Dispersion
- Free from electromagnetic interference
- Good mechanical and environmental performances
- Good flexibility and easy for splicing
- Compliance with RoHS
Application:
- Emergency wiring in the field
- Military communication
Operating Temperature: -40℃~+85℃
Bending Radius:
- Static: 15D
- Dynamic: 20D
Depengding on Cable cores, climate conditions (such as climate temperature, wind speed, ice thickness),
laying span and power line voltage level.
| Fiber Count | Cable Diameter(mm) | Cable Weight (kg) | Tensile Strength(N) | Crush Long/ Short Term(N/100MM) | |
| Long Term | Short Term | ||||
| 2 | 5.0 | 22 | 500 | 1000 | 500/1500 |
| 4 | 5.2 | 24 | 500 | 1000 | 500/1500 |
| 6 | 6.0 | 30 | 500 | 1000 | 500/1500 |
| 8 | 6.3 | 33 | 500 | 1000 | 500/1500 |
Outdoor Optical Cable is a kind of communication line for optical signal transmission, often used as
Field Emergency Cable, military communication Cable and etc.
Field Emergency Cable, military communication Cable, Outdoor Optical Cable real picture
Field Emergency Cable, military communication Cable, Outdoor Optical Cable usage scenarios
