Low Lose Coaxial Cable LQ500BQ Coaxial Cable for CCTV & CATV
75 ohm physical foam insulated radio frequency coaxial cable, which is characterized by the smallest loss. It is mainly used in cable TV and satellite TV systems.
LQ500BQ
FOB
20000 meters
500000meters / Month
China
28Day
Quantity:
US $2.58 - US $3.59
/ meters
Product Name: Low Lose Coaxial Cable LQ500BQ CATV Cable high quality Transmissio Cable
Charateristics:
Electrical Characteristics &Mechanical and Environmental Characteristics:
Attenuation@ 68℉ （20℃）
This products is 75 ohm physical foam insulated radio frequency Coaxial Cable, often used as CATV Cable ,
Transmissio Cable.

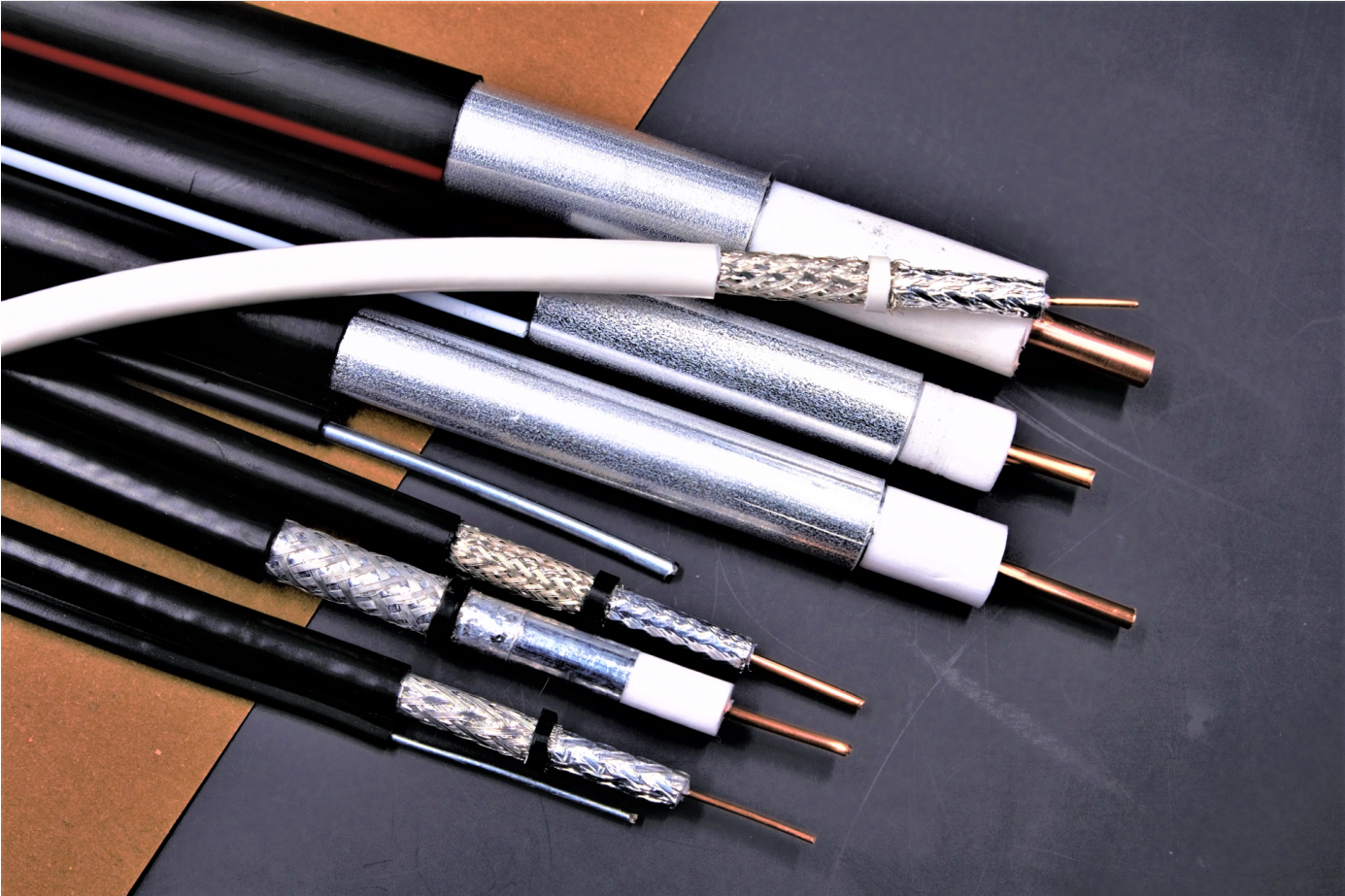

Coaxial Cable, CATV Cable and Transmissio Cable real picture

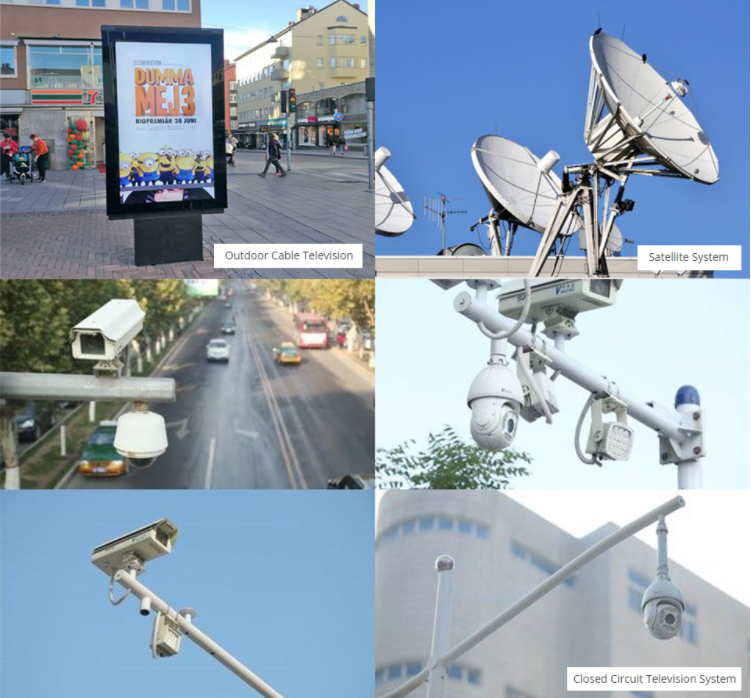

Usage Scenarios
Our high quality and competitive price, Coaxial Cable, CATV Cable and Transmissio Cable,directly
or indirectly choice by China Mobile, Huawei, and major domestic radio and television networks.
Our Coaxial Cable VS Other Cables
Our Vision
Focus on becoming the leader in communication cable industry.
Our advantage prodcts:
1.Coaxial Cable
2.CATV Cable
3.Transmissio Cable
Charateristics:
- Smallest Loss
Application:
- Cable TV & Satellite TV Systems
| Name | Material | Diameter(mm) |
| Inner Conductor | BC or CCA | 2.77 |
| Dielectric | Foamed PE | 11.56 |
| Outer Conductor | Bonded AI. Tape+ AI. Wire+ Non Bonded AI. Tape+ AI. Wire | 13.47 |
| Jacket | Black PE | 14.99 |
| Jacket Wall Thickness | 1.00 | |
Electrical Characteristics &Mechanical and Environmental Characteristics:
| Capacitance(pF/m) | 50±3 | ||
| Impedance(Ohms) | 75±2 | ||
| Velocity of Propagation(%) | 85% | ||
| Shielding Effectiveness(≥dB) | 70 | ||
| Operation Temperature (℃） | -20- +80 or -40- +80 | ||
| Return Loss | Frequency | dB | |
| 5-1000Mhz | ≥23dB | ||
Attenuation@ 68℉ （20℃）
| Frequency(MHz) | ≤dB/100m @ 20 ℃ | Frequency(MHz) | ≤dB/100m @ 20 ℃ |
| 5 | 0.69 | 450 | 5.61 |
| 55 | 1.97 | 500 | 5.91 |
| 211 | 3.81 | 550 | 6.23 |
| 250 | 4.13 | 600 | 6.50 |
| 300 | 4.56 | 750 | 7.32 |
| 350 | 4.92 | 865 | 7.91 |
| 400 | 5.28 | 1000 | 8.50 |
This products is 75 ohm physical foam insulated radio frequency Coaxial Cable, often used as CATV Cable ,
Transmissio Cable.
Coaxial Cable, CATV Cable and Transmissio Cable real picture
Usage Scenarios
Our high quality and competitive price, Coaxial Cable, CATV Cable and Transmissio Cable,directly
or indirectly choice by China Mobile, Huawei, and major domestic radio and television networks.
