Electronic Shielded Coaxial Cable LKF195 RF Cable Network Use Ethernet Cable
This type of product is 50 ohm physical foam insulated radio frequency coaxial cable, which is characterized by taking into account the optimal loss and power, and is the best choice for wireless communication.
LKF 195
FOB
10000 meters
500000meters / Month
China
15Day
Quantity:
US $0.22 - US $0.36
/ meters
Product Name: Electronic Shielded Coaxial Cable LKF195 RF Cable Network Use Ethernet Cable
Electrical Characteristics &Mechanical and Environmental Characteristics:
Attenuation & Average Power @ 20℃ and Sea Level
This type of product is 50 ohm physical foam insulated radio frequency Coaxial Cable, LKF195 RF Cable,
often us as Ethernet Cable or communication transmission equipment.

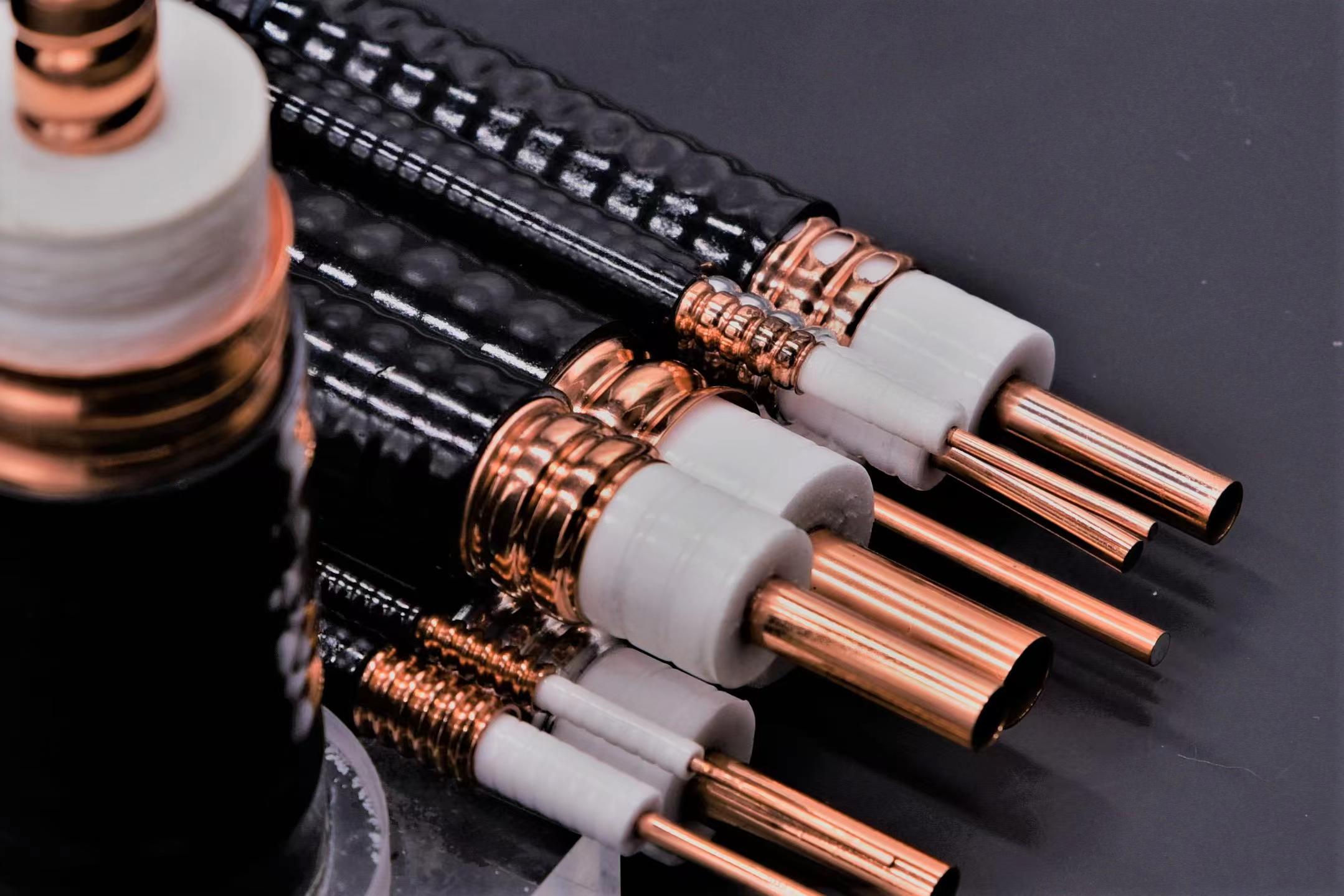

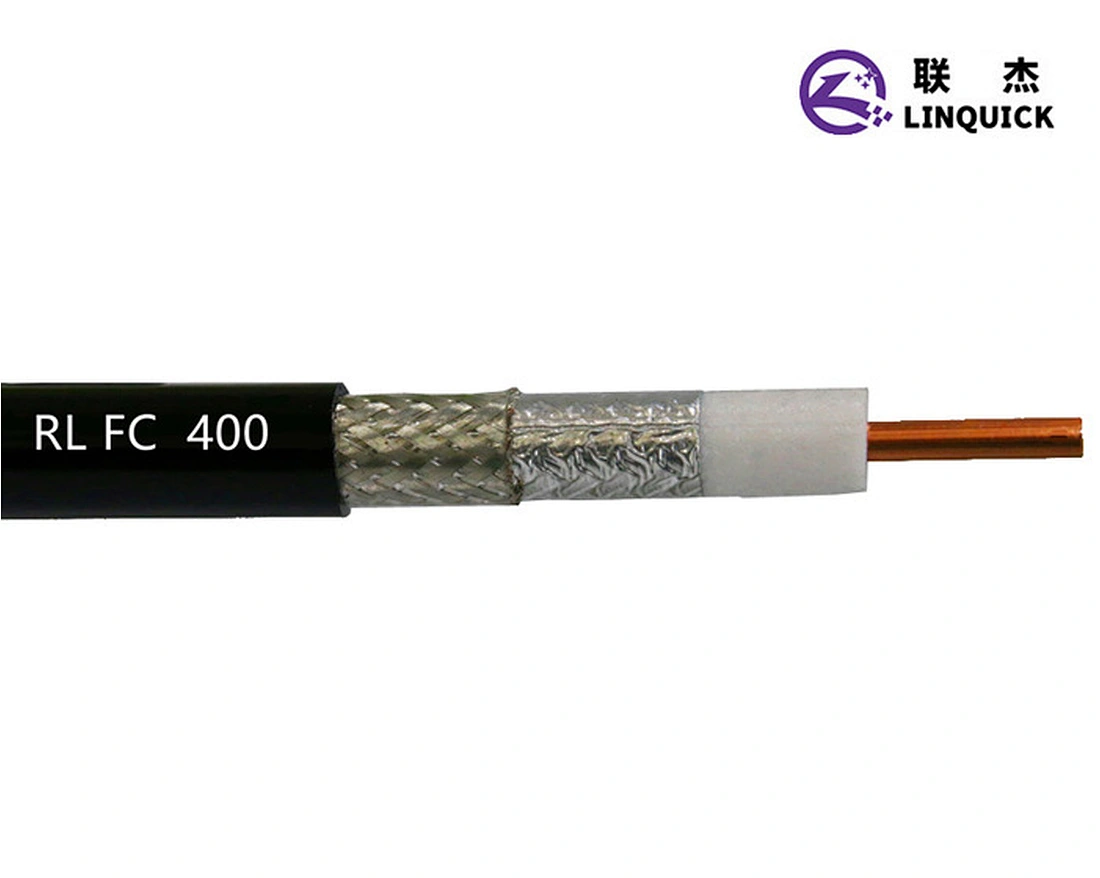

Coaxial Cable, RF Cable and Ethernet Cable real picture
Coaxial Cable, RF Cable and Ethernet Cable usage scenarios
Our Vision
Focus on becoming the leader in communication cable industry.
Our advantage prodcts:
1.Antenna Coaxial Cable
2.RF Cable
3.Network use Ethernet Cable
Charateristics:
- Low Attenuation
- High Power Rating
Application:
- Wireless Communication.
- Two-way Transmission System.
- Testing Equipment & Ethernet.
| Name | Material | Diameter(mm) |
| Inner Conductor | Bare Copper | 0.94 |
| Dielectric | Foam PE | 2.79 |
| Outer Conductor | Bonded Aluminum Foil+Tinned Copper Braid | 3.53 |
| Jacket | PE | 4.95 |
Electrical Characteristics &Mechanical and Environmental Characteristics:
| Impedance(Ohm) | 50 |
| Capacitance(pF/m) | 80 |
| Velocity of Propagation(%) | 80 |
| Jacket Spark (VRMS) | 3000 |
| Peak Power Rating(KW) | 2.5 |
| Shieding Effectiveness(＞dB) | 90 |
| Cut-off Frequency(GHz) | 41 |
Attenuation & Average Power @ 20℃ and Sea Level
| Frequency(MHz) | Attenuation(dB/m) | Average Power(KW) |
| 30 | 0.06 | 0.89 |
| 50 | 0.08 | 0.68 |
| 150 | 0.14 | 0.39 |
| 220 | 0.17 | 0.32 |
| 450 | 0.25 | 0.22 |
| 900 | 0.36 | 0.15 |
| 1500 | 0.47 | 0.12 |
| 1800 | 0.52 | 0.11 |
| 2000 | 0.55 | 0.10 |
| 2500 | 0.62 | 0.09 |
| 5800 | 0.93 | 0.06 |
This type of product is 50 ohm physical foam insulated radio frequency Coaxial Cable, LKF195 RF Cable,
often us as Ethernet Cable or communication transmission equipment.
Coaxial Cable, RF Cable and Ethernet Cable real picture
Coaxial Cable, RF Cable and Ethernet Cable usage scenarios
