Customized Cable LQ412T Coaxial Cable with Power for CCTV Camera Coaxial Cable CATV Cable
75 ohm physical foam insulated radio frequency coaxial cable, which is characterized by the smallest loss. It is mainly used in cable TV and satellite TV systems.
LQ412T
FOB
20000 meters
500000meters / Month
China
28Day
Quantity:
US $2.68 - US $3.24
/ meters
Product Name: Customized Cable LQ412T Coaxial Cable with Power for CCTV Camera Coaxial Cable CATV Cable
Charateristics:
Electrical Characteristics &Mechanical and Environmental Characteristics:
Attenuation@ 68℉ （20℃）
We're professional cable manufacture in china,we can offer Customized Cable, CATV Cable ,
CCTV Camera Coaxial Cable and etc.

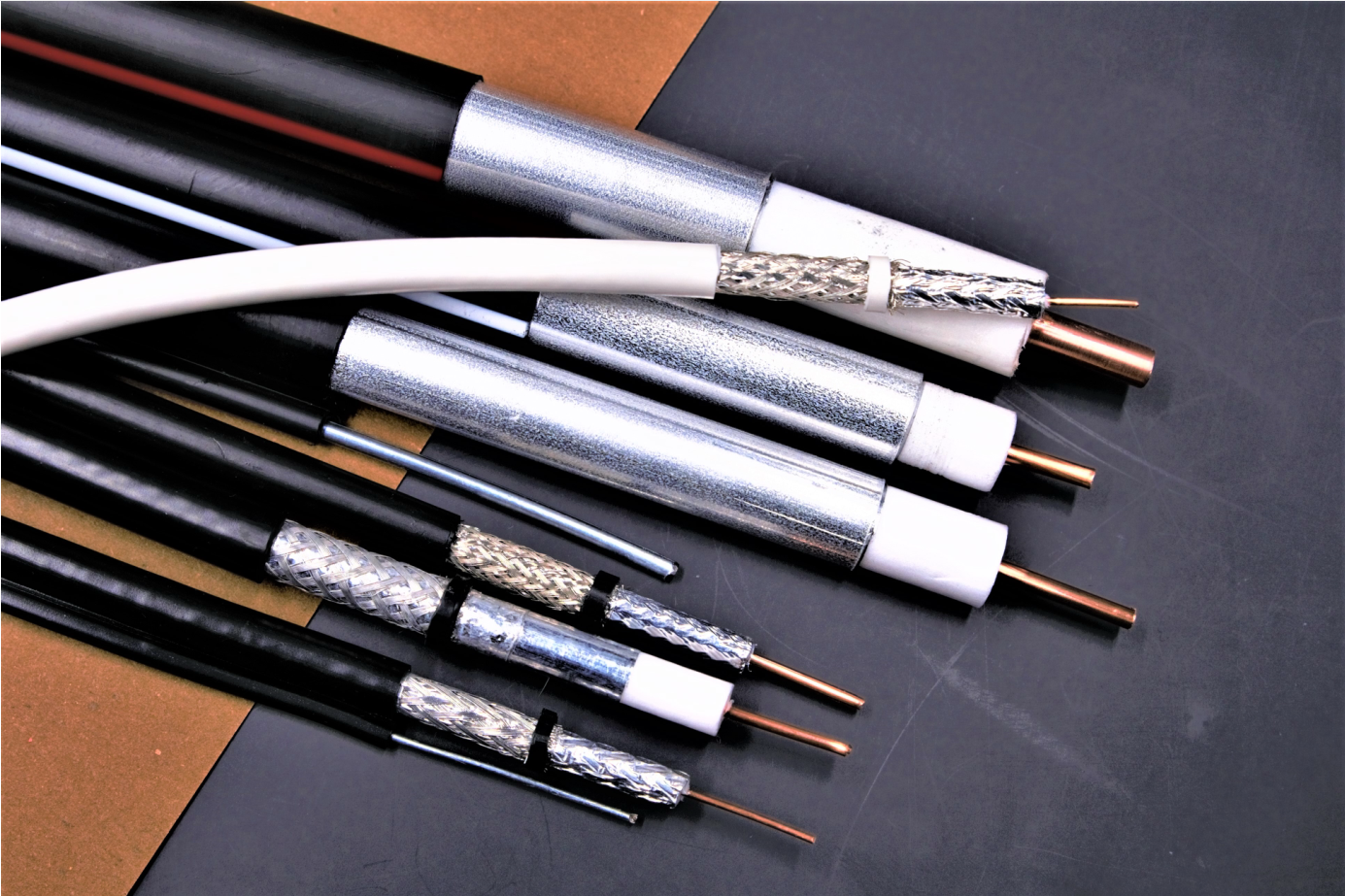

Customized Cable, CATV Cable , CCTV Camera Coaxial Cable real picture

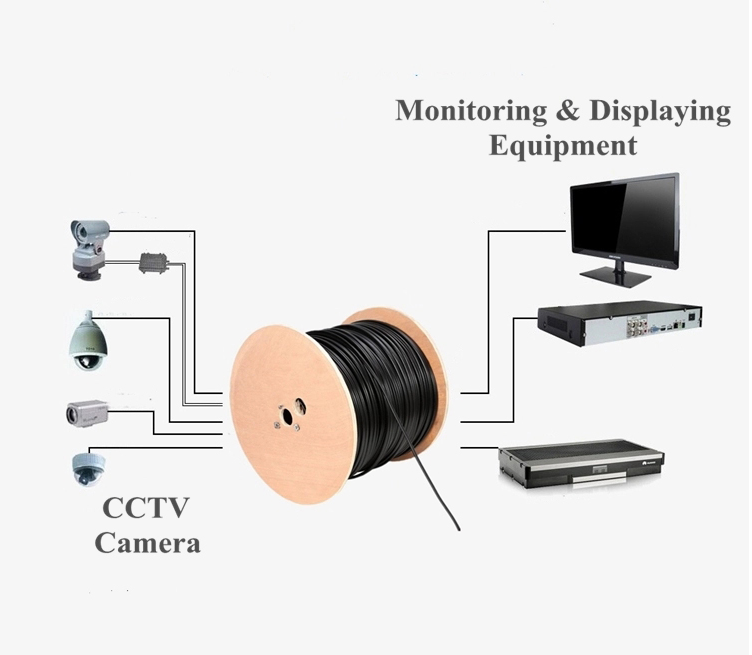

Customized Cable, CATV Cable , CCTV Camera Coaxial Cable usage scenarios
Charateristics:
- Smallest Loss
Application:
- Cable TV & Satellite TV Systems

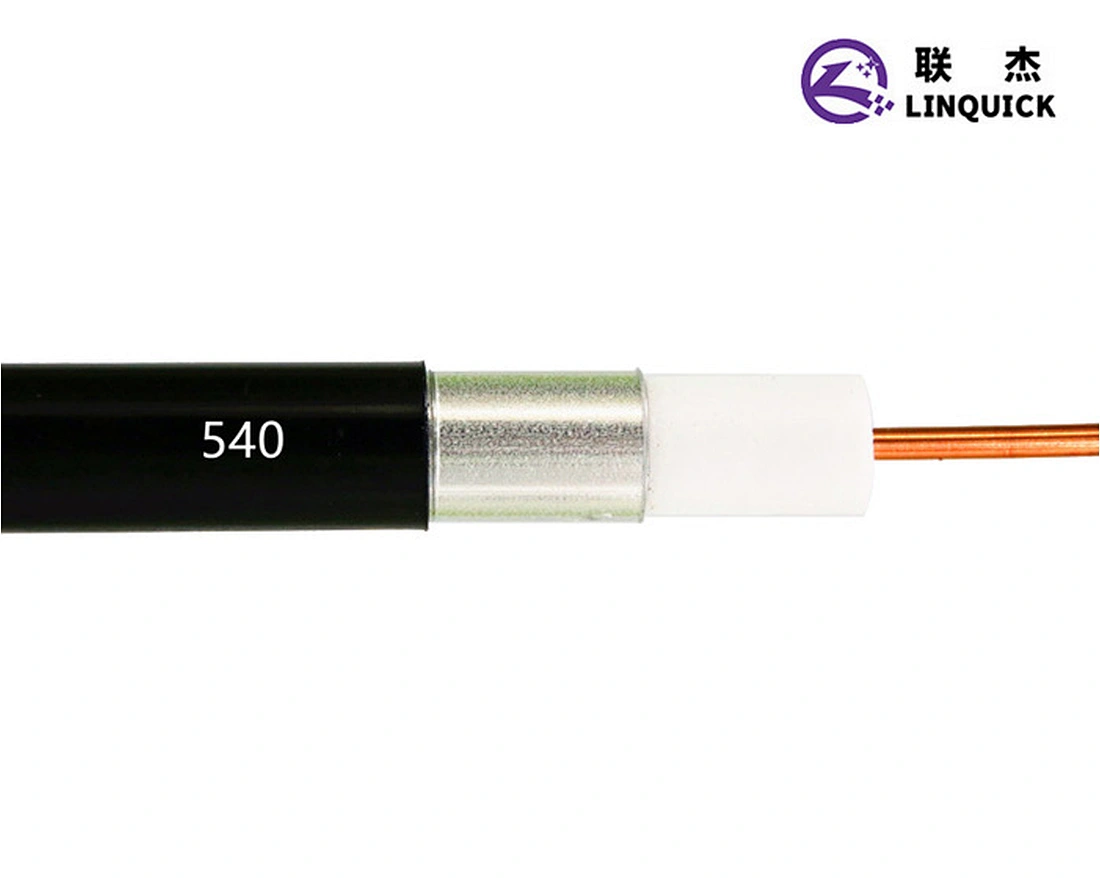

| Name | Material | Diameter(mm) |
| Inner Conductor | BC or CCA | 2.26 |
| Dielectric | Foamed PE | 9.19 |
| Outer Conductor | Seamless AI. Tube | 10.40 |
| Outer Conductor Thickness | 0.61 | |
| Jacket | Black PE | 12.07 |
| Jacket Wall Thickness | 0.80 | |
Electrical Characteristics &Mechanical and Environmental Characteristics:
| Capacitance(pF/m) | 50±3 | ||
| Impedance(Ohms) | 75±2 | ||
| Velocity of Propagation(%) | 87% | ||
| Shielding Effectiveness(≥dB) | 110 | ||
| Operation Temperature (℃） | -40- +80 | ||
| Return Loss | Frequency | dB | |
| 5-1000Mhz | ≥30dB | ||
Attenuation@ 68℉ （20℃）
| Frequency(MHz) | ≤dB/100m @ 20 ℃ | Frequency(MHz) | ≤dB/100m @ 20 ℃ |
| 5 | 0.65 | 450 | 6.92 |
| 55 | 2.26 | 500 | 7.34 |
| 211 | 4.62 | 550 | 7.71 |
| 250 | 5.05 | 600 | 8.10 |
| 300 | 5.57 | 750 | 9.12 |
| 350 | 6.13 | 865 | 9.87 |
| 400 | 6.46 | 1000 | 10.73 |
We're professional cable manufacture in china,we can offer Customized Cable, CATV Cable ,
CCTV Camera Coaxial Cable and etc.
Customized Cable, CATV Cable , CCTV Camera Coaxial Cable real picture
Customized Cable, CATV Cable , CCTV Camera Coaxial Cable usage scenarios
