Antenna cable coaxial cable LQ500TF 75 ohm TV CATV SATELLITE Cable
75 ohm physical foam insulated radio frequency coaxial cable, which is characterized by the smallest loss. It is mainly used in cable TV and satellite TV systems.
LQ500TF
FOB
20000 meters
500000meters / Month
China
28Day
Quantity:
US $2.88 - US $3.77
/ meters
Product Name: LQ500TF Antenna cable high quality Coaxial Cable 75 ohm SATELLITE Cable
Charateristics:
Electrical Characteristics &Mechanical and Environmental Characteristics:
Attenuation@ 68℉ （20℃）
75 ohm physical foam insulated radio frequency Coaxial Cable, often used as Antenna cable , SATELLITE Cable.

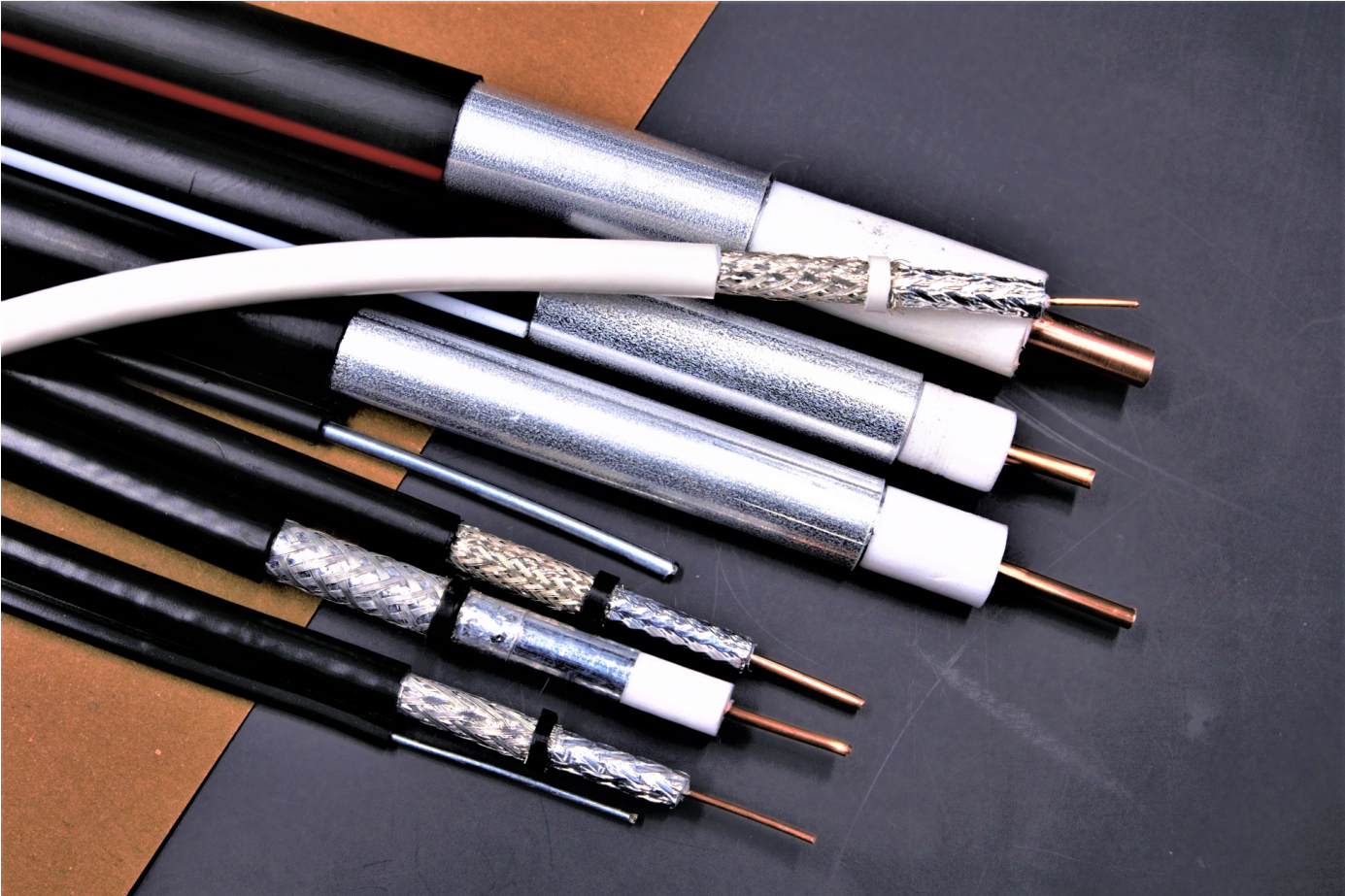

Coaxial Cable, SATELLITE Cable and Antenna cable real picture

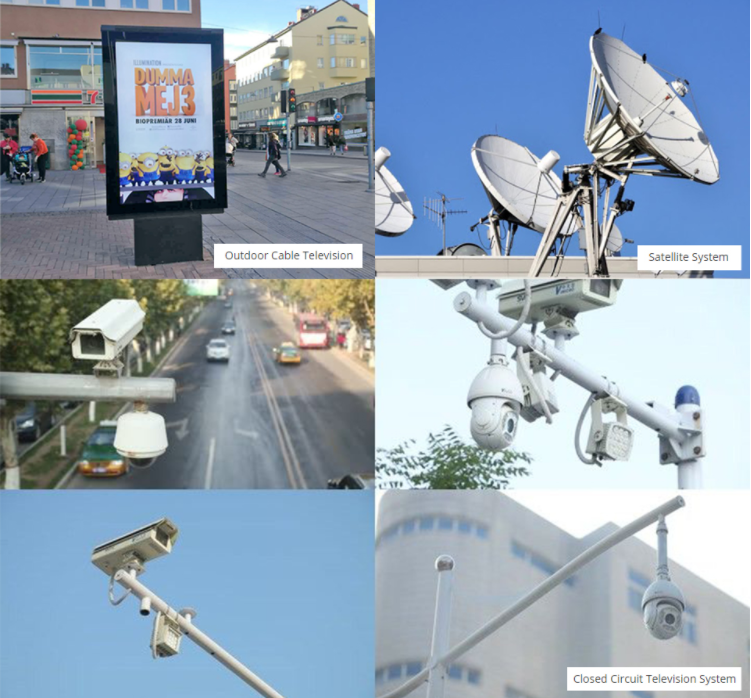

Usage Scenarios
Coaxial Cable for outdoor cable television.
Antenna cable for closed circuit television sysytem.
SATELLITE Cable for satellite system.
Our advantage prodcts:
1.Coaxial Cable
2.SATELLITE Cable
3.Antenna cable
Charateristics:
- Smallest Loss
Application:
- Cable TV & Satellite TV Systems
| Name | Material | Diameter(mm) |
| Inner Conductor | BC or CCA | 2.77 |
| Dielectric | Foamed PE | 11.43 |
| Outer Conductor | Seamless AI. Tube | 12.70 |
| Outer Conductor Thickness | 0.61 | |
| Flooding Compound | Jelly | |
| Jacket | Black PE with co-extruded color stripes | 14.48 |
| Jacket Wall Thickness | 0.76 | |
Electrical Characteristics &Mechanical and Environmental Characteristics:
| Capacitance(pF/m) | 50±3 | ||
| Impedance(Ohms) | 75±2 | ||
| Velocity of Propagation(%) | 87% | ||
| Shielding Effectiveness(≥dB) | 110 | ||
| DC Resistance of Inner Conductor | 4.43 ohms/km | ||
| DC Resistance of Outer Conductor | 1.21 ohms/km | ||
| DC Loop Resistance | 5.64 ohms/km | ||
| Return Loss | Frequency | dB | |
| 5-1000Mhz | ≥30dB | ||
Attenuation@ 68℉ （20℃）
| Frequency(MHz) | ≤dB/100m @ 20 ℃ | Frequency(MHz) | ≤dB/100m @ 20 ℃ |
| 5 | 0.52 | 450 | 5.35 |
| 55 | 1.77 | 500 | 5.67 |
| 211 | 3.58 | 550 | 5.97 |
| 250 | 3.94 | 600 | 6.27 |
| 300 | 4.30 | 750 | 7.09 |
| 350 | 4.69 | 865 | 7.68 |
| 400 | 5.02 | 1000 | 8.27 |
75 ohm physical foam insulated radio frequency Coaxial Cable, often used as Antenna cable , SATELLITE Cable.
Coaxial Cable, SATELLITE Cable and Antenna cable real picture
Usage Scenarios
Coaxial Cable for outdoor cable television.
Antenna cable for closed circuit television sysytem.
SATELLITE Cable for satellite system.
