Antenna Cable LKF300 Coaxial Copper RF Cable for test equipment Communication Cable
This type of product is 50 ohm physical foam insulated radio frequency coaxial cable, which is characterized by taking into account the optimal loss and power, and is the best choice for wireless communication.
LKF300
FOB
10000 meters
500000meters / Month
China
15Day
Quantity:
US $0.43 - US $0.56
/ meters
Product Name: Antenna Cable LKF300 Coaxial Copper RF Cable for test equipment Communication Cable
Electrical Characteristics &Mechanical and Environmental Characteristics:
Attenuation & Average Power @ 20℃ and Sea Level
This type of product is 50 ohm physical foam insulated radio frequency Copper RF Cable, often use as
Antenna Cable, Communication Cable and etc.

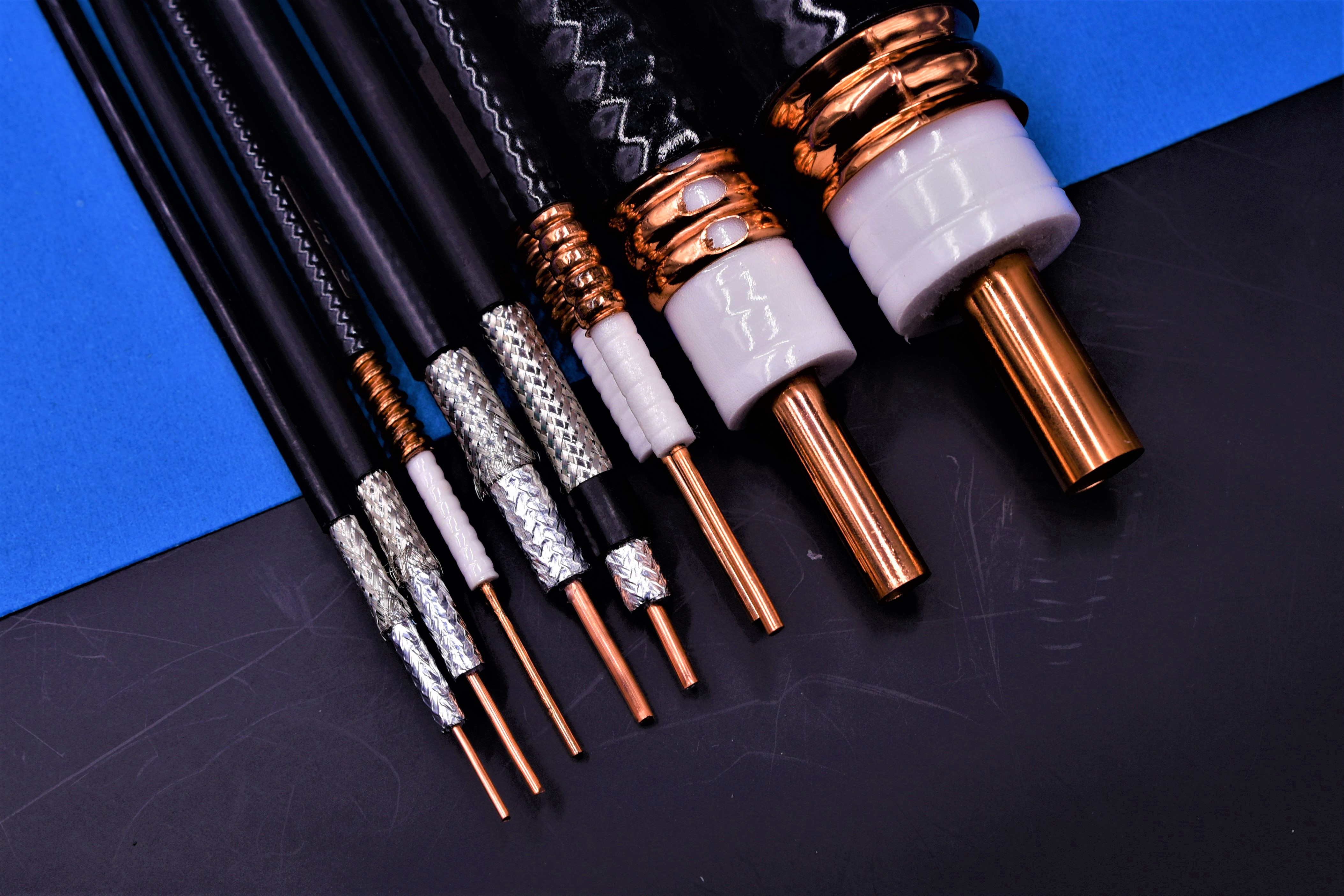

Antenna Cable,Copper RF Cable and Communication Cable real picture
Antenna Cable,Copper RF Cable and Communication Cable usage scenarios
Our Vision
Focus on becoming the leader in communication cable industry.
Our advantage prodcts:
1.Antenna Cable
2.Copper RF Cable
3.Communication Cable
Charateristics:
- Low Attenuation
- High Power Rating
Application:
- Wireless Communication.
- Two-way Transmission System.
- Testing Equipment & Ethernet.
| Name | Material | Diameter(mm) |
| Inner Conductor | Bare Copper | 1.78 |
| Dielectric | Foam PE | 4.83 |
| Outer Conductor | Bonded Aluminum Foil+Tinned Copper Braid | 5.72 |
| Jacket | PE | 7.62 |
Electrical Characteristics &Mechanical and Environmental Characteristics:
| Impedance(Ohm) | 50 |
| Capacitance(pF/m) | 80 |
| Velocity of Propagation(%) | 85 |
| Jacket Spark (VRMS) | 5000 |
| Peak Power Rating(KW) | 10 |
| Shieding Effectiveness(＞dB) | 90 |
| Cut-off Frequency(GHz) | 24.5 |
Attenuation & Average Power @ 20℃ and Sea Level
| Frequency(MHz) | Attenuation(dB/m) | Average Power(KW) |
| 30 | 0.03 | 2.10 |
| 50 | 0.04 | 1.60 |
| 150 | 0.08 | 0.92 |
| 220 | 0.09 | 0.76 |
| 450 | 0.13 | 0.52 |
| 900 | 0.20 | 0.36 |
| 1500 | 0.26 | 0.28 |
| 1800 | 0.28 | 0.25 |
| 2000 | 0.30 | 0.24 |
| 2500 | 0.34 | 0.21 |
| 5800 | 0.54 | 0.13 |
