Factory Price 50ohm Coaxial Cable Corrugated Copper Tube LKF 1/2〃 Feeder Cable for Wireless Communication
This type of product is 50 ohm physical foam insulated radio frequency coaxial cable, which is characterized by taking into account the optimal loss and power, and is the best choice for wireless communication.
LKF 1/2〃
FOB
10000 meters
500000meters / Month
China
7Day
Quantity:
US $0.99 - US $1.11
/ meters
Product Name: Factory Price 50ohm Coaxial Cable Corrugated Copper Tube LKF 1/2〃 Feeder Cable for Wireless Communication
（50ohm Coaxial Cable，1/2〃 Feeder Cable for Wireless Communication）
Electrical Characteristics &Mechanical and Environmental Characteristics:
Attenuation(VSWR1.0,cable temp.20℃)and Average Power( VSWR1.0,ambient temp.40℃)
(50ohm Coaxial Cable，1/2〃 Feeder Cable for Wireless Communication)
This type of product is 50ohm Coaxial Cable, 1/2〃 Feeder Cable for Wireless Communication

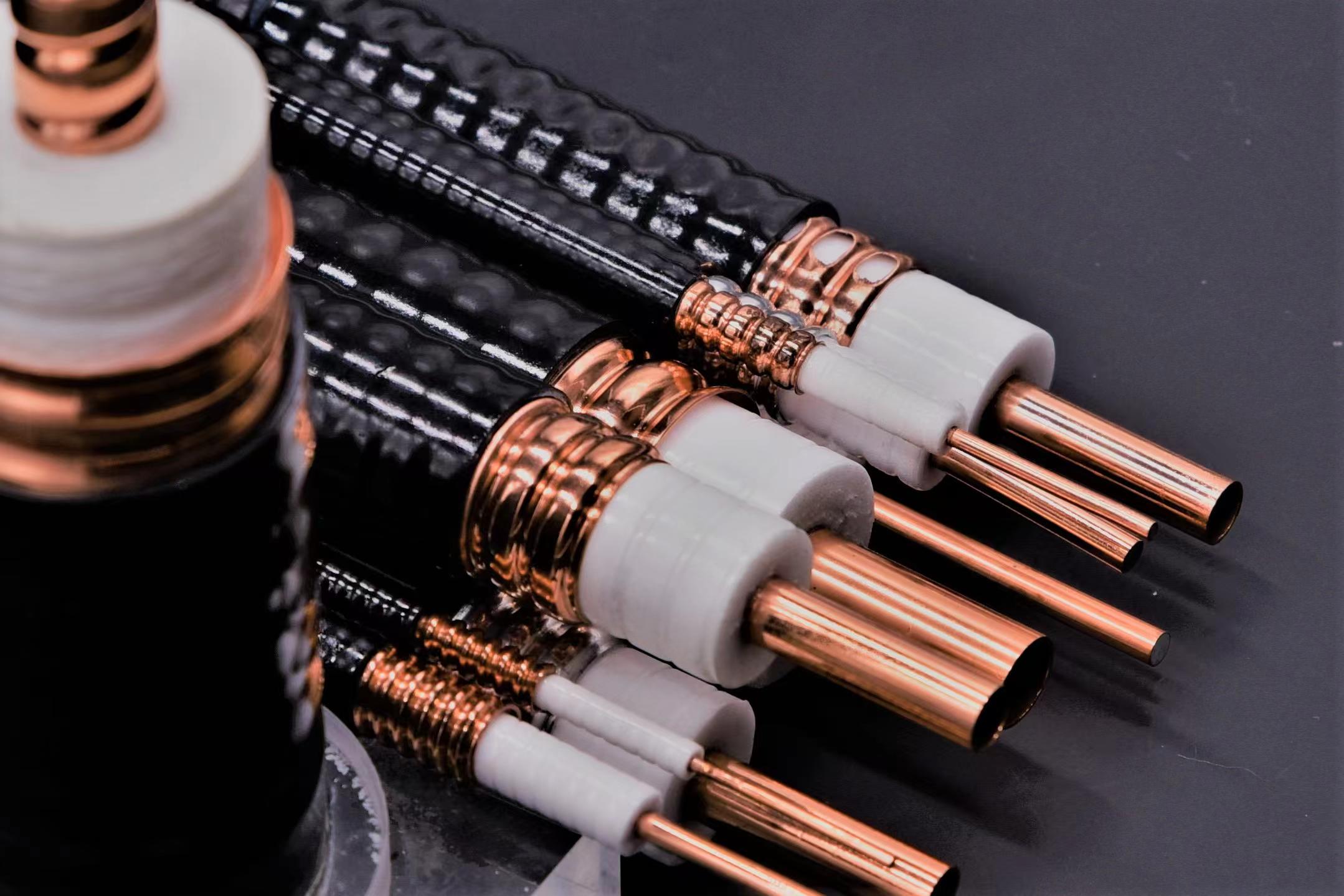

50ohm Coaxial Cable, 1/2〃 Feeder Cable for Wireless Communication real picture

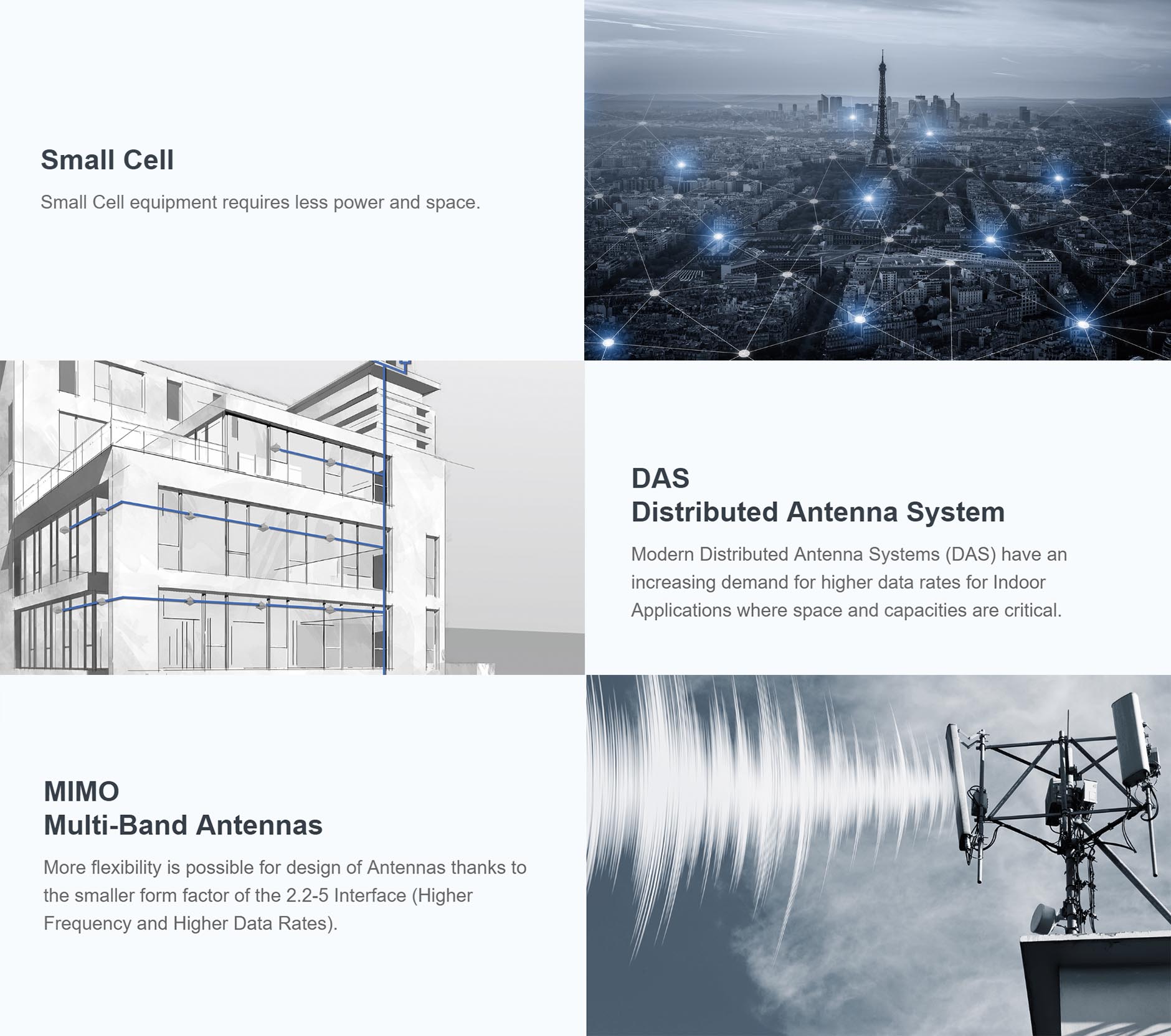

50ohm Coaxial Cable, 1/2〃 Feeder Cable for Wireless Communication usage scenarios
1.50ohm Coaxial Cable- Small Cell
2. 1/2〃 Feeder Cable for Wireless Communication-DAS Distuibuted Antenna System
We're professional supplier for RF coaxial fiber, such as 50ohm Coaxial Cable, 1/2〃 Feeder Cable for Wireless Communication
and etc.
Our advantage products:
1.50ohm Coaxial Cable,
2.1/2〃 Feeder Cable for Wireless Communication
Charateristics:
- Low Attenuation
- High Power Rating
Application:
- Wireless Communication.
- Two-way Transmission System.
- Testing Equipment & Ethernet.
（50ohm Coaxial Cable，1/2〃 Feeder Cable for Wireless Communication）
| Name | Material | Diameter(mm) |
| Inner Conductor | Copper Clad Aluminum Wire or Copper | 4.8 |
| Dielectric | Foam PE | 12.3 |
| Outer Conductor | Corrugated Copper Tube | 13.8 |
| Jacket | PE or Low Smoke Halogen-free Fire-retardant PE | 15.7 |
Electrical Characteristics &Mechanical and Environmental Characteristics:
| Impedance(Ohm) | 50 |
| Capacitance(pF/m) | 76 |
| Velocity of Propagation(%) | 88 |
| Peak Power Rating(KW) | 40.0 |
| RF Peak Voltage(KV) | 1.6 |
| Insulation Resistance(MΩ.km) | ＞5000 |
| Cut-off Frequency(GHz) | 8.8 |
| Insulation Voltage(KV) | 6 |
| Inner Conductor DC Resistance(Ω/km) | 1.48 |
| Outer Conductor DC Resistance(Ω/km) | 1.9 |
| Jacket Spark(KV) | 8.0 |
| Shieding Effectiveness(dB) | ＞120 |
| VSWR ≤ (Return loss ≥ dB) | 0.005—3GHz | 1.15 (23) |
| 0.8—1.0GHz | 1.10 (26) | |
| 1.7—2.0GHz | 1.10 (26) | |
| 2.0—2.4GHz | 1.10 (26) | |
| 2.0—2.4GHz | 1.20 (20) |
| Min. Single Bending Radius(mm) | 50 |
| Min. Repeated Bending Radius(mm) | 125 |
| No. of Bends | 15 |
| Tensile Strength(kg) | 110 |
| Storage Temp.(℃) | -55~+85 |
| Installation Temp.(℃) | -40~+60 |
| Operating Temp.(℃) | -55~+85 |
Attenuation(VSWR1.0,cable temp.20℃)and Average Power( VSWR1.0,ambient temp.40℃)
(50ohm Coaxial Cable，1/2〃 Feeder Cable for Wireless Communication)
| Frequency(MHz) | Attenuation(dB/100m) | Average Power(KW) |
| 100 | 2.15 | 3.94 |
| 200 | 3.08 | 2.75 |
| 450 | 4.7 | 1.80 |
| 800 | 6.35 | 1.33 |
| 900 | 6.75 | 1.25 |
| 1000 | 7.20 | 1.18 |
| 1500 | 9.05 | 0.95 |
| 1800 | 9.90 | 0.86 |
| 2000 | 10.50 | 0.81 |
| 2200 | 11.10 | 0.77 |
| 2400 | 11.60 | 0.75 |
| 2500 | 11.95 | 0.73 |
| 3000 | 13.20 | 0.65 |
| 5800 | 21.82 | / |
This type of product is 50ohm Coaxial Cable, 1/2〃 Feeder Cable for Wireless Communication

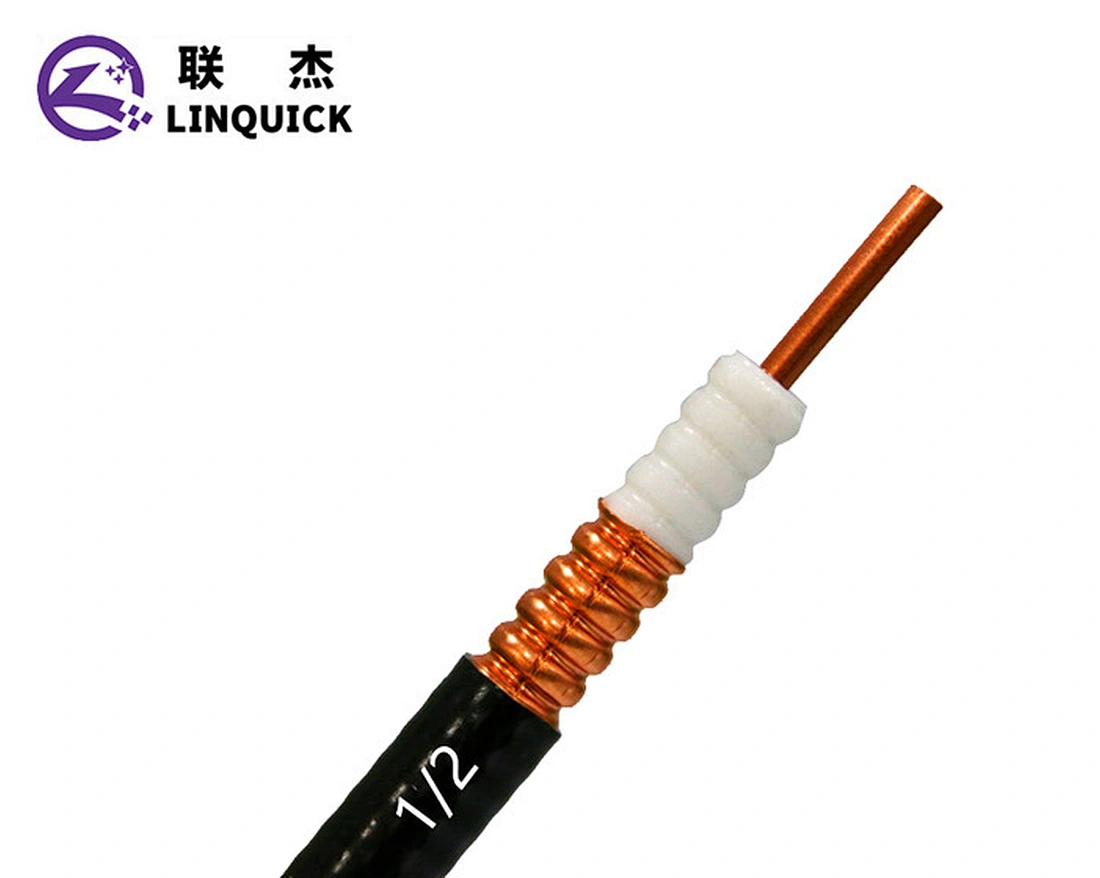

50ohm Coaxial Cable, 1/2〃 Feeder Cable for Wireless Communication real picture
50ohm Coaxial Cable, 1/2〃 Feeder Cable for Wireless Communication usage scenarios
1.50ohm Coaxial Cable- Small Cell
2. 1/2〃 Feeder Cable for Wireless Communication-DAS Distuibuted Antenna System
We're professional supplier for RF coaxial fiber, such as 50ohm Coaxial Cable, 1/2〃 Feeder Cable for Wireless Communication
and etc.
Our advantage products:
1.50ohm Coaxial Cable,
2.1/2〃 Feeder Cable for Wireless Communication
