High quality 50 Ohm feeder cable 1/2 RF coaxial cable for communication transmission cable
This type of product is 50 ohm physical foam insulated radio frequency coaxial cable, which is characterized by taking into account the optimal loss and power, and is the best choice for wireless communication.
LKF1/2〃s
FOB
10000 meters
500000meters / Month
China
7Day
Quantity:
US $0.98 - US $1.03
/ meters
Product Name: High quality 50 Ohm feeder cable 1/2 RF coaxial cable for communication transmission cable
(RF coaxial cable, 50 Ohm feeder cable, communication transmission cable)
Electrical Characteristics &Mechanical and Environmental Characteristics:
Attenuation(VSWR1.0,cable temp.20℃)and Average Power( VSWR1.0,ambient temp.40℃)
(RF coaxial cable, 50 Ohm feeder cable, communication transmission cable）
This type of product is 50 Ohm feeder cable, RF coaxial cable, often use as communication transmission cable.

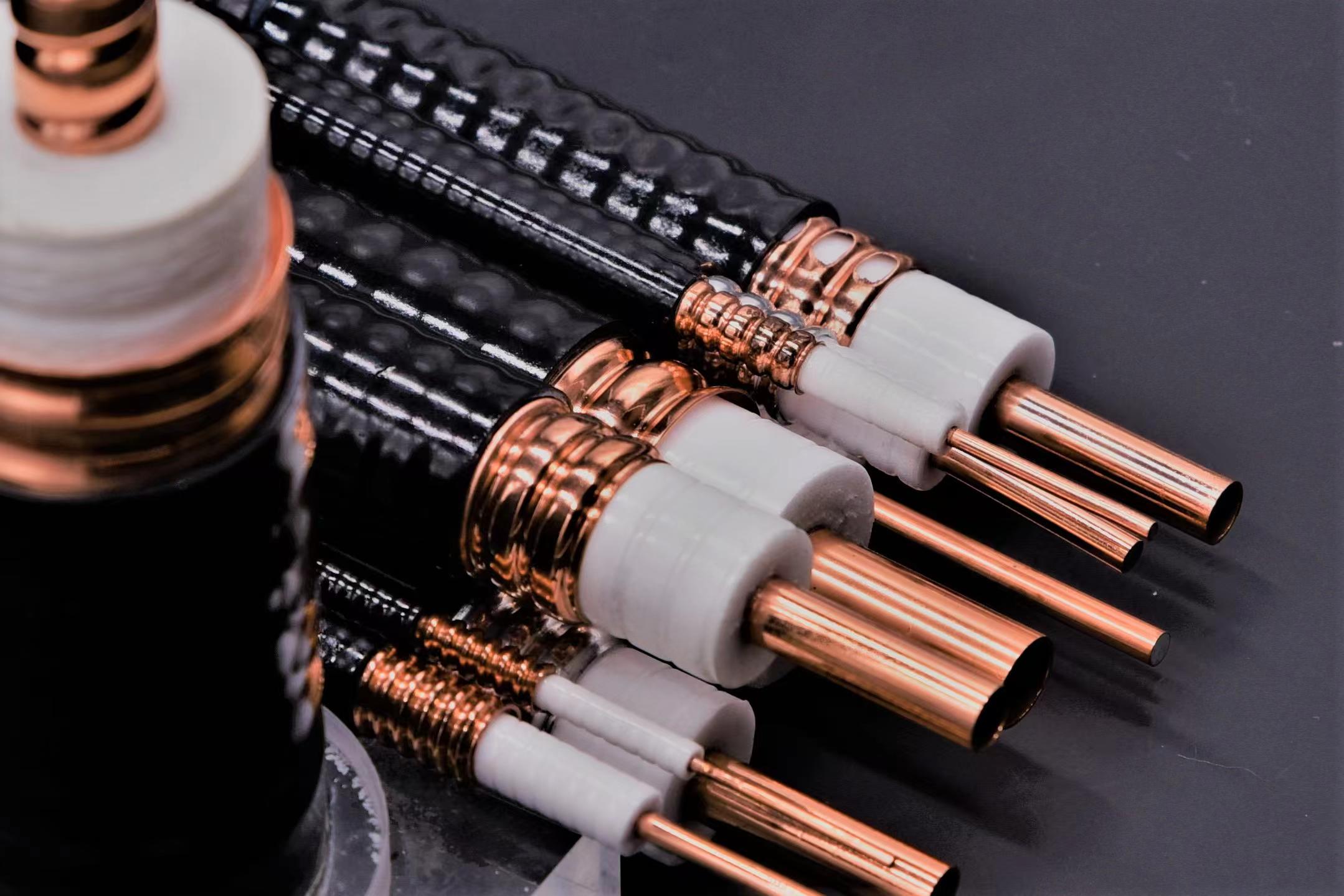

50 Ohm feeder cable, RF coaxial cable, communication transmission cable real picture
RF coaxial cable, 50 Ohm feeder cable, communication transmission cable usage scenarios
1.RF coaxial cable- Snall Cell
2.50 Ohm feeder cable-DAS Distuibuted Antenna System
3.communication transmission cable- MIMO Multi-Band Antennas
We're professional supplier for RF coaxial cable, 50 Ohm feeder cable, communication transmission cable
and etc.
Our advantage products:
1.50 Ohm feeder cable
2.RF coaxial cable
3.communication transmission cable
Charateristics:
- Low Attenuation
- High Power Rating
Application:
- Wireless Communication.
- Two-way Transmission System.
- Testing Equipment & Ethernet.
(RF coaxial cable, 50 Ohm feeder cable, communication transmission cable)
| Name | Material | Diameter(mm) |
| Inner Conductor | Copper Clad Aluminum Wire or Copper | 3.55 |
| Dielectric | Foam PE | 8.70 |
| Outer Conductor | Helical Copper Tube | 12.00 |
| Jacket | PE or Low Smoke Halogen-free Fire-retardant PE | 13.40 |
Electrical Characteristics &Mechanical and Environmental Characteristics:
| Impedance(Ohm) | 50 |
| Capacitance(pF/m) | 80 |
| Velocity of Propagation(%) | 83 |
| Peak Power Rating(KW) | 19 |
| RF Peak Voltage(KV) | 1.13 |
| Insulation Resistance(MΩ.km) | ＞5000 |
| Cut-off Frequency(GHz) | 12.5 |
| Insulation Voltage(KV) | 2.5 |
| Inner Conductor DC Resistance(Ω/km) | 2.85 |
| Outer Conductor DC Resistance(Ω/km) | 3.5 |
| Jacket Spark(KV) | 5.0 |
| Shieding Effectiveness(dB) | ＞120 |
| VSWR ≤ (Return loss ≥ dB) | 0.005—3GHz | 1.15 (23) |
| 0.8—1.0GHz | 1.10 (26) | |
| 1.7—2.0GHz | 1.10 (26) | |
| 2.0—2.4GHz | 1.10 (26) | |
| 2.0—2.4GHz | 1.20 (20) |
| Min. Single Bending Radius(mm) | 50 |
| Min. Repeated Bending Radius(mm) | 125 |
| No. of Bends | 15 |
| Tensile Strength(kg) | 110 |
| Storage Temp.(℃) | -55~+85 |
| Installation Temp.(℃) | -40~+60 |
| Operating Temp.(℃) | -55~+85 |
Attenuation(VSWR1.0,cable temp.20℃)and Average Power( VSWR1.0,ambient temp.40℃)
(RF coaxial cable, 50 Ohm feeder cable, communication transmission cable）
| Frequency(MHz) | Attenuation(dB/100m) | Average Power(KW) |
| 100 | 3.22 | 3.03 |
| 200 | 4.65 | 2.11 |
| 450 | 7.20 | 1.37 |
| 800 | 9.86 | 1.00 |
| 900 | 10.56 | 0.94 |
| 1000 | 11.15 | 0.88 |
| 1500 | 13.80 | 0.70 |
| 1800 | 15.55 | 0.63 |
| 2000 | 16.40 | 0.59 |
| 2200 | 17.35 | 0.56 |
| 2400 | 18.10 | 0.53 |
| 2500 | 18.50 | 0.52 |
| 3000 | 20.90 | 0.48 |
| 5800 | 34.25 | / |
This type of product is 50 Ohm feeder cable, RF coaxial cable, often use as communication transmission cable.

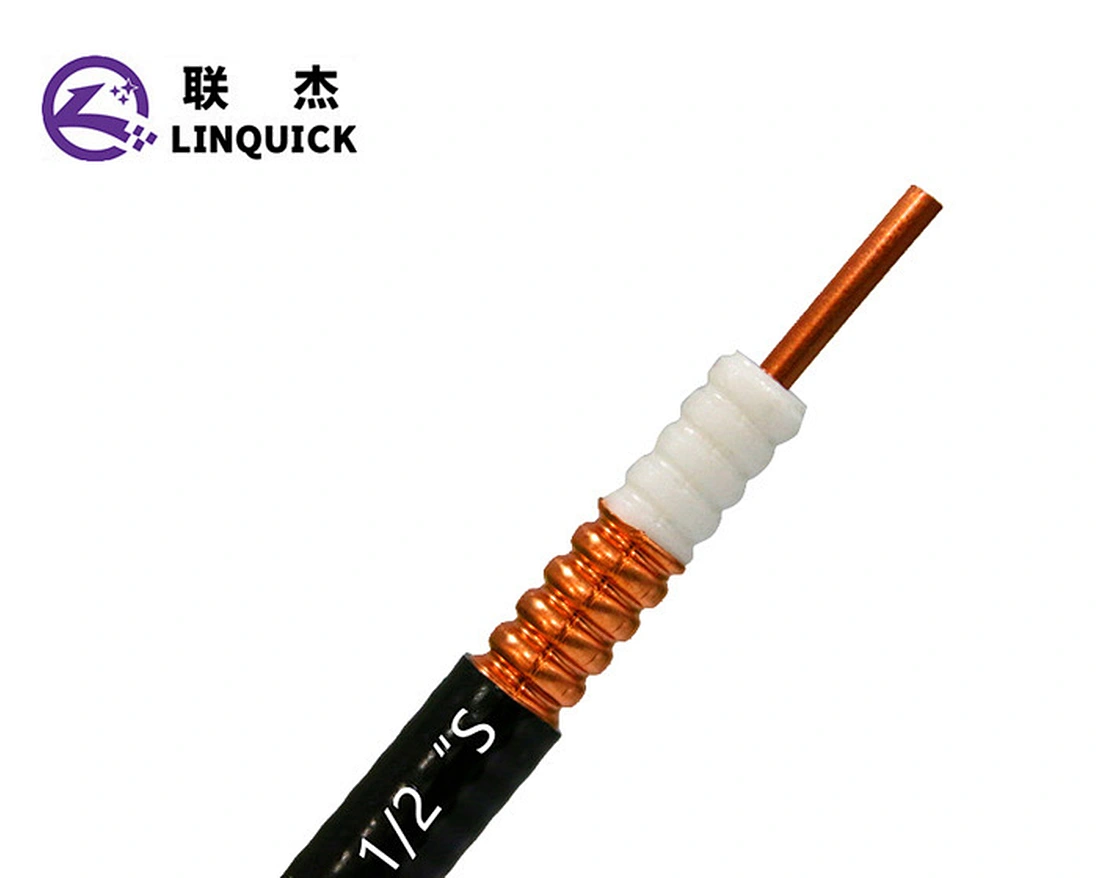

50 Ohm feeder cable, RF coaxial cable, communication transmission cable real picture
RF coaxial cable, 50 Ohm feeder cable, communication transmission cable usage scenarios
1.RF coaxial cable- Snall Cell
2.50 Ohm feeder cable-DAS Distuibuted Antenna System
3.communication transmission cable- MIMO Multi-Band Antennas
We're professional supplier for RF coaxial cable, 50 Ohm feeder cable, communication transmission cable
and etc.
Our advantage products:
1.50 Ohm feeder cable
2.RF coaxial cable
3.communication transmission cable
