Outdoor Aerial Cable and Duct Optical Fiber Cable GYTA 12 24 core Armoured Fiber Optic Cable
Outdoor optical cable is a kind of communication line for optical signal transmission. It is mainly composed of a number of optical fibers in a certain way to form a cable core, which is covered with a sheath, and some are also covered with an outer sheath.
GYTA
FOB
10000 meters
500000meters / Month
China
15Day
Quantity:
US $0.12 - US $1.18
/ meters
Product Name: Outdoor Aerial Cable and Duct Optical Fiber Cable GYTA 12 24 core Armoured Fiber Optic Cable
Operating Temperature: -40℃~+70℃
Bending Radius:
Outdoor Aerial Cable, Duct Optical Fiber Cable, Armoured Fiber Optic Cable are a kind of communication
line for optical signal transmission.

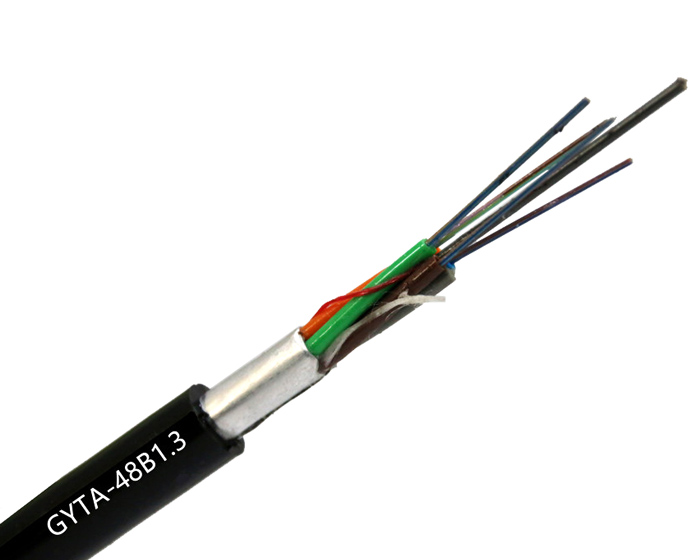

Outdoor Aerial Cable, Duct Optical Fiber Cable, Armoured Fiber Optic Cable real picture

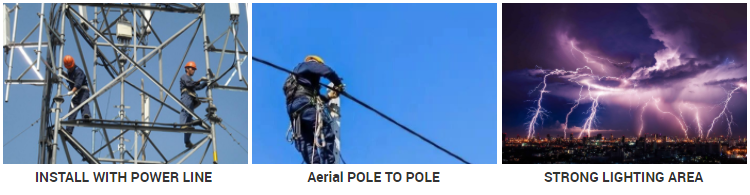

Outdoor Aerial Cable, Duct Optical Fiber Cable, Armoured Fiber Optic Cable usage scenarios

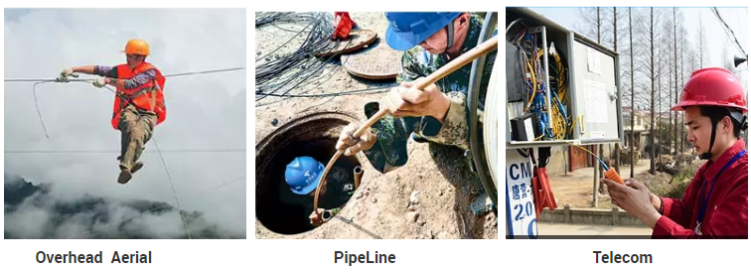

1.Outdoor Aerial Cable- Overhead Aerial
2.Duct Optical Fiber Cable-Pipeline
3.Armoured Fiber Optic Cable- Telecom
We can offer high quality Outdoor Aerial Cable,Duct Optical Fiber Cable, Armoured Fiber Optic Cable
for your choice.
Charateristics:
- Large Transmission Capacity
- Long Distance Repeater
- Low Attenuation
- Low Dispersion
- Free from Electromagnetic Interference
Application:
- Duct and Aerial Installations.
Operating Temperature: -40℃~+70℃
Bending Radius:
- Static: 10xD
- Dynamic: 20xD
| Fiber Count | Cable Diameter(mm) | Loose Tube Number | Fiber per Tube | Diameter of Strength Member(mm) | Tensile Strength(N) | Crush Long/ Short Term(N/100MM) | |
| Long Term | Short Term | ||||||
| 2-30 | 8.8 | 5 | 6 | 1.4 | 600 | 1500 | 300/1000 |
| 32-36 | 9.1 | 6 | 6 | 2.0 | 600 | 1500 | 300/1000 |
| 36-60 | 9.5 | 5 | 12 | 1.6 | 600 | 1500 | 300/1000 |
| 62-72 | 9.8 | 6 | 12 | 2.0 | 600 | 1500 | 300/1000 |
| 74-96 | 11.2 | 8 | 12 | 2.0/3.2 | 600 | 1500 | 300/1000 |
| 98-108 | 11.7 | 9 | 12 | 2.0/3.7 | 600 | 1500 | 300/1000 |
| 110-120 | 12.3 | 10 | 12 | 2.0/4.2 | 600 | 1500 | 300/1000 |
| 122-144 | 13.5 | 14 | 12 | 2.0/5.4 | 600 | 1500 | 300/1000 |
| 146-216 | 13.9 | 18 | 12 | 2.0 | 600 | 1500 | 300/1000 |
| 218-288 | 17.4 | 24 | 12 | 2.0/3.7 | 600 | 1500 | 300/1000 |
Outdoor Aerial Cable, Duct Optical Fiber Cable, Armoured Fiber Optic Cable are a kind of communication
line for optical signal transmission.
Outdoor Aerial Cable, Duct Optical Fiber Cable, Armoured Fiber Optic Cable real picture
Outdoor Aerial Cable, Duct Optical Fiber Cable, Armoured Fiber Optic Cable usage scenarios
1.Outdoor Aerial Cable- Overhead Aerial
2.Duct Optical Fiber Cable-Pipeline
3.Armoured Fiber Optic Cable- Telecom
We can offer high quality Outdoor Aerial Cable,Duct Optical Fiber Cable, Armoured Fiber Optic Cable
for your choice.
