Direct bury Outdoor Cable GYTA53 12core/24core/48core/60cores/72cores double sheath APL & PSP double armored fiber optic cable
Outdoor optical cable is a kind of communication line for optical signal transmission. It is mainly composed of a number of optical fibers in a certain way to form a cable core, which is covered with a sheath, and some are also covered with an outer sheath.
GYTA53
FOB
10000 meters
500000meters / Month
China
15Day
Quantity:
US $0.20 - US $1.29
/ meters
Product Name: Direct bury Outdoor Cable GYTA53 12core/24core/48core/60cores/72cores double sheath APL & PSP double armored fiber optic cable
Operating Temperature: -40℃~+70℃
Bending Radius:
Outdoor fiber optic cable including Direct bury Outdoor Cable and double armored fiber optic cable.

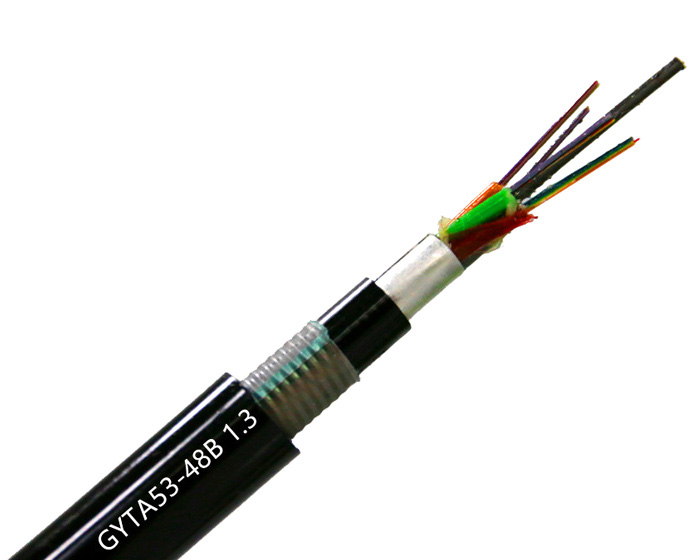

Outdoor fiber optic cable,Direct bury Outdoor Cable,double armored fiber optic cable real picture

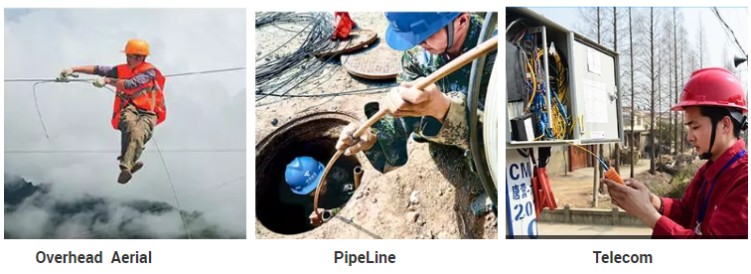

Direct bury Outdoor Cable,double armored fiber optic cable usage scenarios
1.Direct bury Outdoor Cable- Pipeline
2.double armored fiber optic-Telecom
Charateristics:
- Large Transmission Capacity
- Long Distance Repeater
- Low Attenuation
- Low Dispersion
- Free from Electromagnetic Interference
Application:
- Duct, Aerial and Buried Installations.
Operating Temperature: -40℃~+70℃
Bending Radius:
- Static: 12.5xD
- Dynamic: 25xD
| Fiber Count | Cable Diameter(mm) | Loose Tube Number | Fiber per Tube | Diameter of Strength Member(mm) | Tensile Strength(N) | Crush Long/ Short Term(N/100MM) | |
| Long Term | Short Term | ||||||
| 2-36 | 12.2 | 6 | 6 | 2.0 | 1000 | 3000 | 1000/3000 |
| 38-72 | 12.7 | 6 | 12 | 2.0 | 1000 | 3000 | 1000/3000 |
| 74-96 | 14.0 | 8 | 12 | 2.0/3.2 | 1000 | 3000 | 1000/3000 |
| 98-108 | 14.5 | 9 | 12 | 2.0/3.7 | 1000 | 3000 | 1000/3000 |
| 110-120 | 15.1 | 10 | 12 | 2.0/4.2 | 1000 | 3000 | 1000/3000 |
| 122-144 | 16.1 | 14 | 12 | 2.0/5.4 | 1000 | 3000 | 1000/3000 |
| 146-216 | 16.6 | 18 | 12 | 2.0 | 1000 | 3000 | 1000/3000 |
| 218-288 | 20.2 | 24 | 12 | 2.0/3.7 | 1000 | 3000 | 1000/3000 |
Outdoor fiber optic cable including Direct bury Outdoor Cable and double armored fiber optic cable.

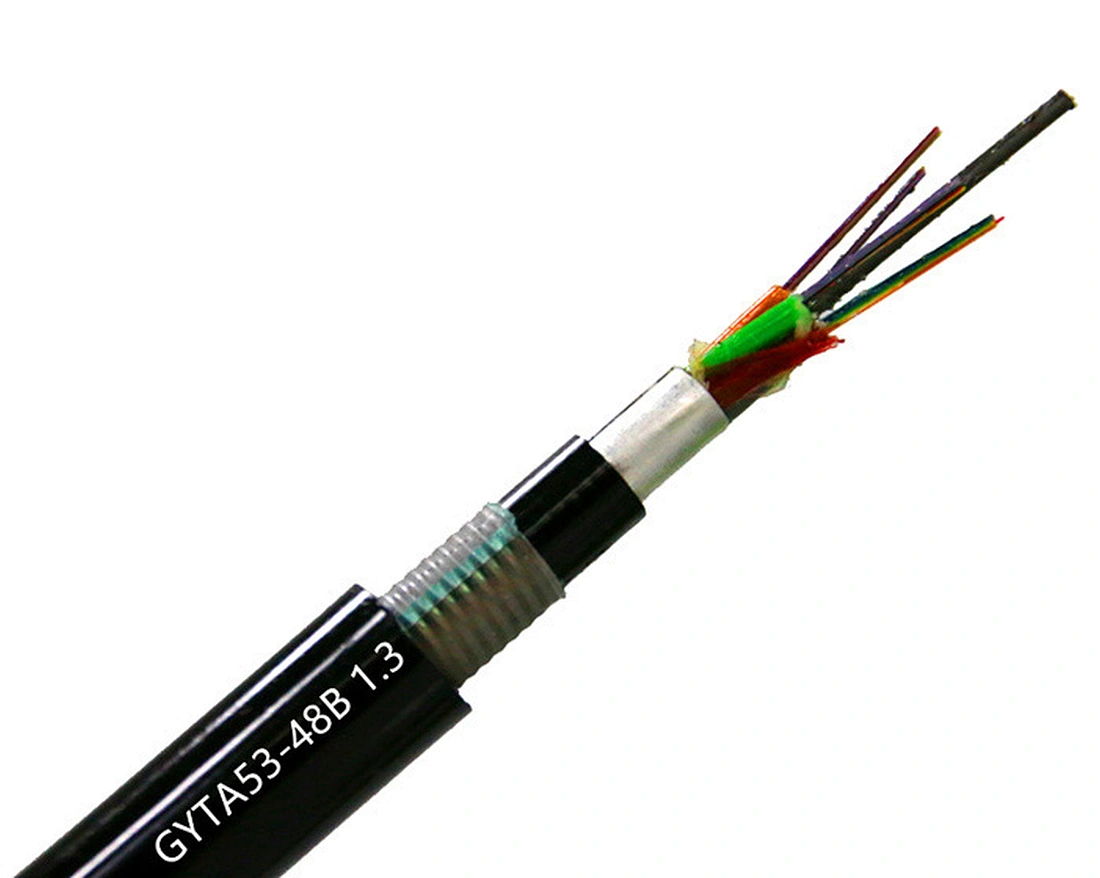

Outdoor fiber optic cable,Direct bury Outdoor Cable,double armored fiber optic cable real picture

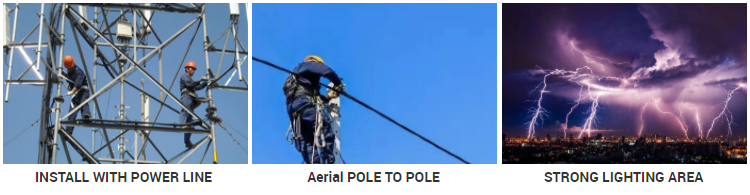

Direct bury Outdoor Cable,double armored fiber optic cable usage scenarios
