Best Quality 75ohm Coaxial Cable LQ412T with Messenger BC or CCA conductor telecom Coaxial cable
75 ohm physical foam insulated radio frequency coaxial cable, which is characterized by the smallest loss. It is mainly used in cable TV and satellite TV systems.
LQ412T+Messenger
FOB
20000 meters
500000meters / Month
China
28Day
Quantity:
US $2.68 - US $3.24
/ meters

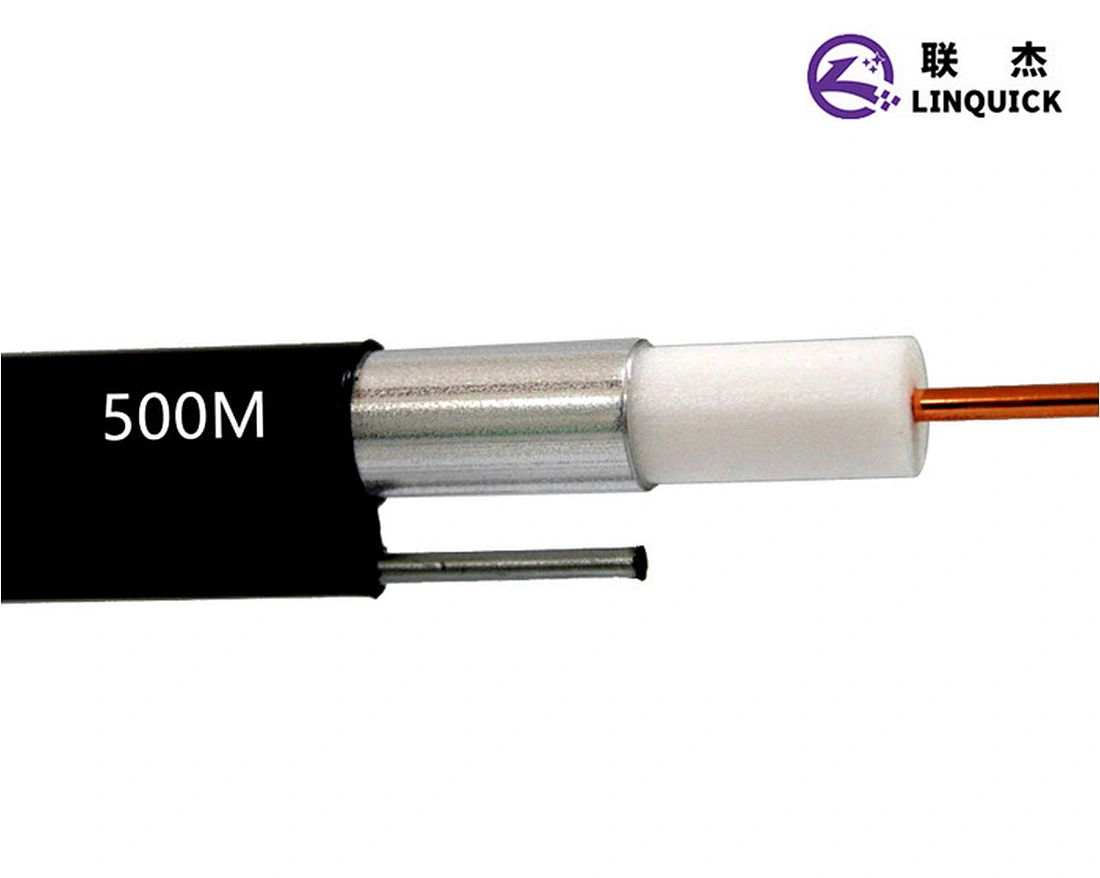

Product Name: Best Quality 75ohm Coaxial Cable LQ412T with Messenger for CATV Cable & camera cable
Charateristics:
Electrical Characteristics &Mechanical and Environmental Characteristics:
Attenuation@ 68℉ （20℃）
This products is 75 ohm physical foam insulated radio frequency Coaxial Cable, often used as CATV Cable ,
camera cable and etc.

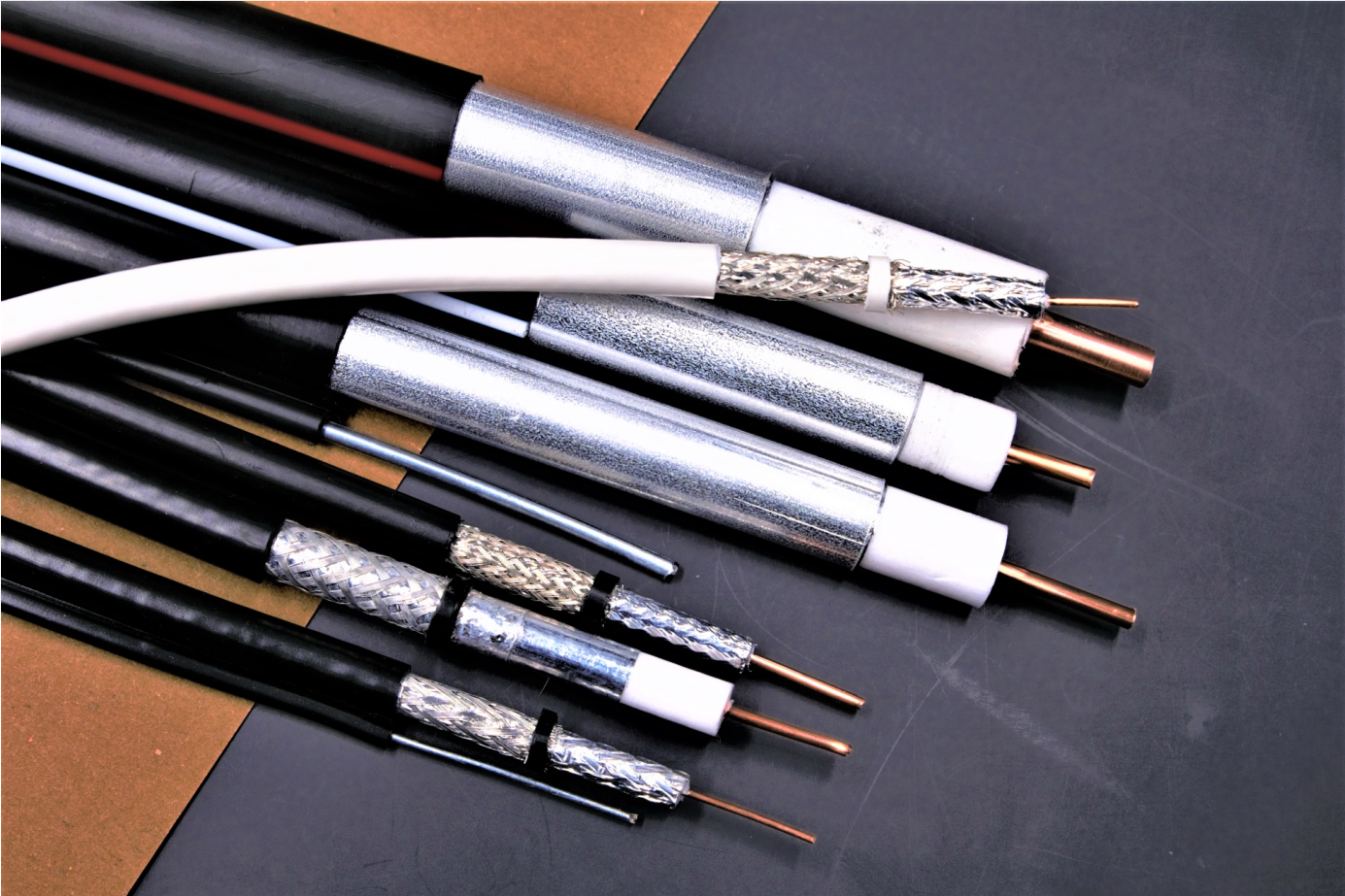

Coaxial Cable, CATV Cable and camera cable real picture
Usage Scenarios
Coaxial Cable for broadcasting equipment.
CATV Cable for community antenna television.
camera cable for surveillance camera.
Our Vision
Focus on becoming the leader in communication cable industry.
Our advantage prodcts:
1.Coaxial Cable
2.CATV Cable
3.camera cable
Charateristics:
- Smallest Loss
Application:
- CATV & Satellite TV Systems
| Name | Material | Diameter(mm) |
| Inner Conductor | BC or CCA | 2.26 |
| Dielectric | Foamed PE | 9.19 |
| Outer Conductor | Seamless AI. Tube | 10.40 |
| Outer Conductor Thickness | 0.61 | |
| Jacket | Black PE | 12.07 |
| Jacket Wall Thickness | 0.80 | |
| Messenger | Steel | 2.77 |
Electrical Characteristics &Mechanical and Environmental Characteristics:
| Capacitance(pF/m) | 50±3 | ||
| Impedance(Ohms) | 75±2 | ||
| Velocity of Propagation(%) | 87% | ||
| Shielding Effectiveness(≥dB) | 110 | ||
| Operation Temperature (℃） | -40~+80 | ||
| Return Loss | Frequency | dB | |
| 5-1000Mhz | ≥30dB | ||
Attenuation@ 68℉ （20℃）
| Frequency(MHz) | ≤dB/100m @ 20 ℃ | Frequency(MHz) | ≤dB/100m @ 20 ℃ |
| 5 | 0.65 | 450 | 6.92 |
| 55 | 2.26 | 500 | 7.34 |
| 211 | 4.62 | 550 | 7.71 |
| 250 | 5.05 | 600 | 8.10 |
| 300 | 5.57 | 750 | 9.12 |
| 350 | 6.13 | 865 | 9.87 |
| 400 | 6.46 | 1000 | 10.73 |
This products is 75 ohm physical foam insulated radio frequency Coaxial Cable, often used as CATV Cable ,
camera cable and etc.
Coaxial Cable, CATV Cable and camera cable real picture
Usage Scenarios
Coaxial Cable for broadcasting equipment.
CATV Cable for community antenna television.
camera cable for surveillance camera.
